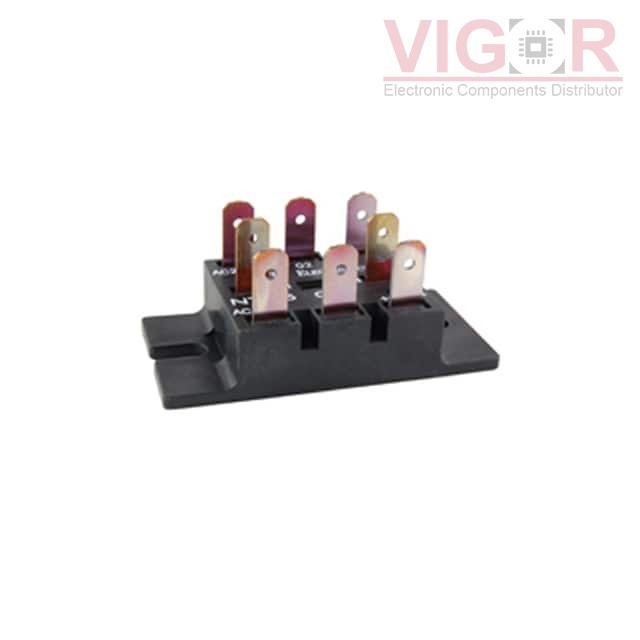

NTE5700

Image is for reference,
please contact us to get the real picture

Part No :

NTE5700

Manufacturer
NTE Electronics, Inc.
Description
INDUSTRIAL POWER MODULE
Catalog
Thyristors - SCRs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
NTE5700 PDF
Availability
42 pieces
Unit Price
$76.96000

Current price of NTE5700 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Bag
Part Status:Active
Structure:Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes:2 SCRs, 2 Diodes
Voltage - Off State:1200 V
Current - On State (It (AV)) (Max):12.5 A
Current - On State (It (RMS)) (Max):17.5 A
Voltage - Gate Trigger (Vgt) (Max):2 V
Current - Gate Trigger (Igt) (Max):60 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):357A, 375A
Current - Hold (Ih) (Max):100 mA
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:-
Package / Case:Module
