VS-P101

VS-P101

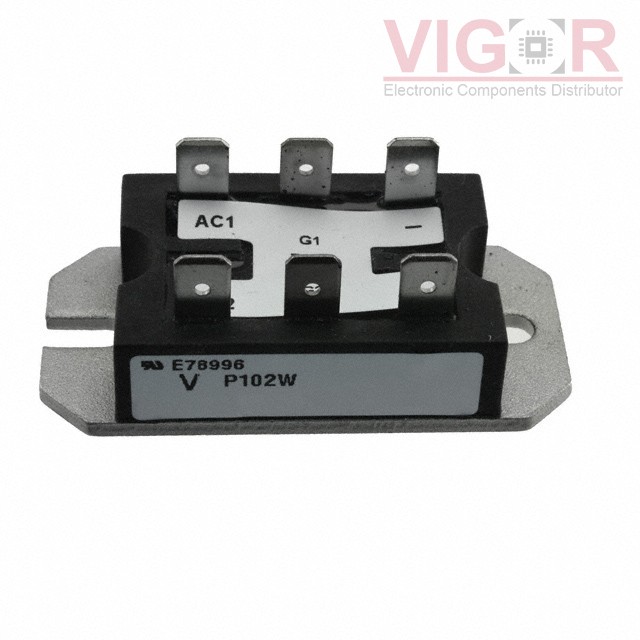

Image is for reference,
please contact us to get the real picture

Part No :

VS-P101

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
MOD BRIDGE CC 25A 400V D-19
Catalog
Thyristors - SCRs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
VS-P101 PDF
Availability
0 pieces
Unit Price
$37.71000

Current price of VS-P101 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VS-P101 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Structure:Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes:2 SCRs, 2 Diodes
Voltage - Off State:400 V
Current - On State (It (AV)) (Max):-
Current - On State (It (RMS)) (Max):-
Voltage - Gate Trigger (Vgt) (Max):2 V
Current - Gate Trigger (Igt) (Max):60 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):357A, 375A
Current - Hold (Ih) (Max):130 mA
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Chassis Mount
Package / Case:8-PACE-PAK
