NTE5705

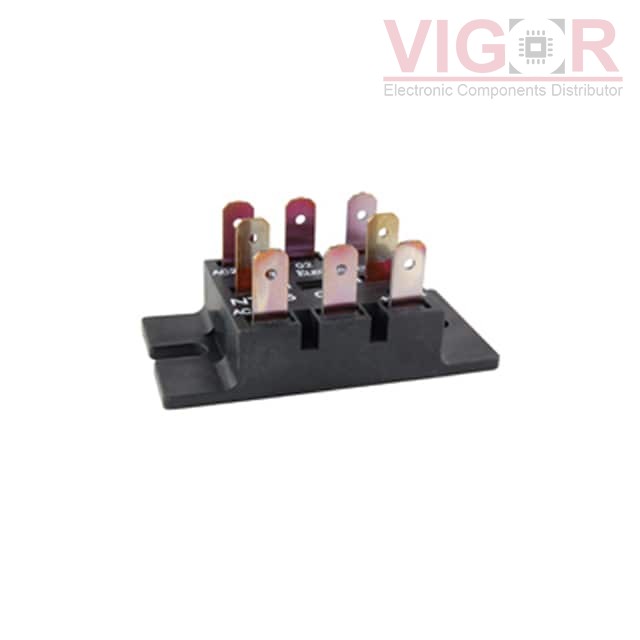

Image is for reference,
please contact us to get the real picture

Part No :: NTE5705

Manufacturer: NTE Electronics, Inc.

Description: INDUSTRIAL POWER MODULE

Catalog: Thyristors - SCRs - Modules

Shipped from: HK warehouse

Expected Shipping Date: Jul 14 - Jul 18 2025

DataSheet: NTE5705 PDF

Availability: 38 pieces

Unit Price: ~~$106.88000~~

Current price of NTE5705 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTE5705 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Structure:	Series Connection - All SCRs
Number of SCRs, Diodes:	2 SCRs
Voltage - Off State:	1200 V
Current - On State (It (AV)) (Max):	12.5 A
Current - On State (It (RMS)) (Max):	15.5 A
Voltage - Gate Trigger (Vgt) (Max):	2 V
Current - Gate Trigger (Igt) (Max):	60 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	357A, 375A
Current - Hold (Ih) (Max):	100 mA
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	-
Package / Case:	Module

Please confirm the specifications of the products when ordering.
