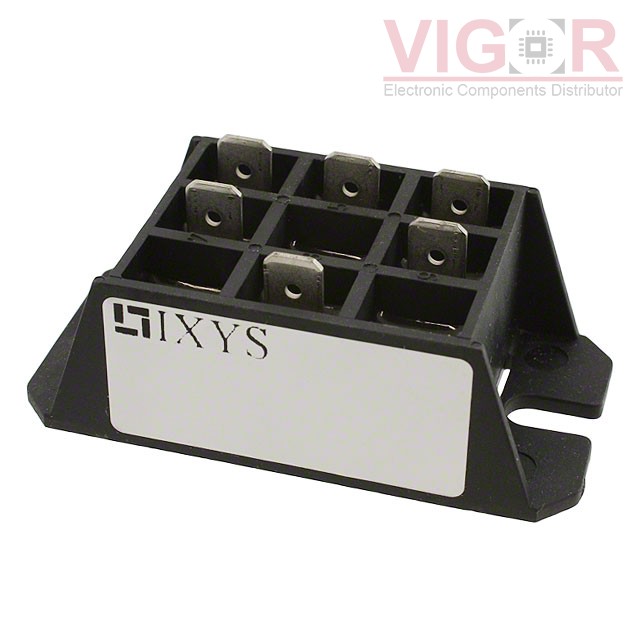

VHF15-16IO5

Image is for reference,
please contact us to get the real picture

Part No :

VHF15-16IO5

Manufacturer
Wickmann / Littelfuse
Description
RECT BRIDGE 1PH 1600V PWS-E-1
Catalog
Thyristors - SCRs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
VHF15-16IO5 PDF
Availability
0 pieces
Unit Price
$24.24000

Current price of VHF15-16IO5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Bulk
Part Status:Active
Structure:Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes:2 SCRs, 2 Diodes
Voltage - Off State:1.6 kV
Current - On State (It (AV)) (Max):-
Current - On State (It (RMS)) (Max):15 A
Voltage - Gate Trigger (Vgt) (Max):1 V
Current - Gate Trigger (Igt) (Max):65 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):190A, 210A
Current - Hold (Ih) (Max):100 mA
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Chassis Mount
Package / Case:PWS-E1
