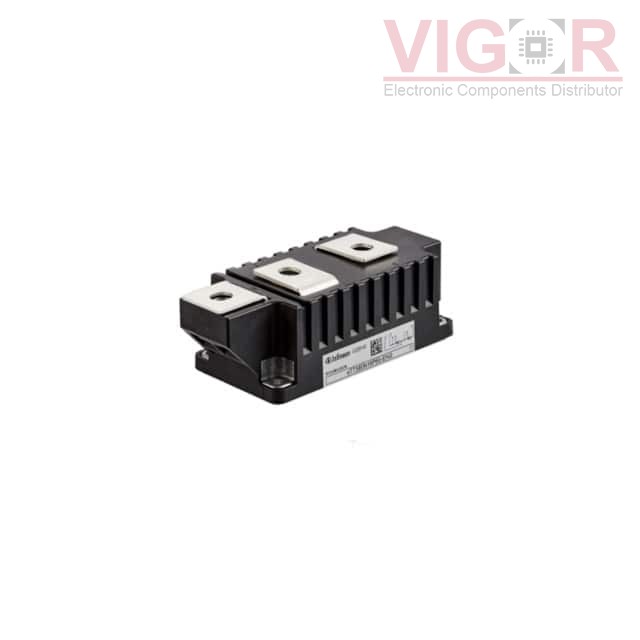

ETD480N22P60HPSA1

Image is for reference,
please contact us to get the real picture

Part No :

ETD480N22P60HPSA1

Manufacturer
IR (Infineon Technologies)
Description
THYR / DIODE MODULE DK
Catalog
Thyristors - SCRs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
ETD480N22P60HPSA1 PDF
Availability
8 pieces
Unit Price
$228.46000

Current price of ETD480N22P60HPSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tray
Part Status:Not For New Designs
Structure:Series Connection - SCR/Diode
Number of SCRs, Diodes:1 SCR, 1 Diode
Voltage - Off State:2.2 kV
Current - On State (It (AV)) (Max):480 A
Current - On State (It (RMS)) (Max):700 A
Voltage - Gate Trigger (Vgt) (Max):2.2 V
Current - Gate Trigger (Igt) (Max):250 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):14700A @ 50Hz
Current - Hold (Ih) (Max):300 mA
Operating Temperature:-40°C ~ 135°C (TC)
Mounting Type:Chassis Mount
Package / Case:Module
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
HOT TT280N16SOFHPSA1

TT280N16SOFHPSA1

SCR MODULE 1.6KV 520A MODULE

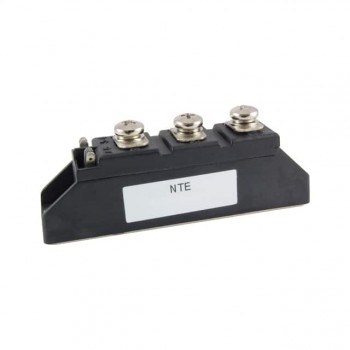

HOT NTE5722

NTE5722

SCR 1200V 90A MODULE

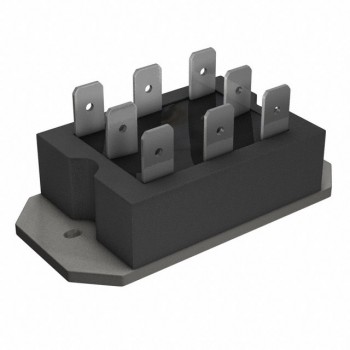

HOT VS-P403KW
