VS-VSKL136/08PBF

VS-VSKL136/08PBF

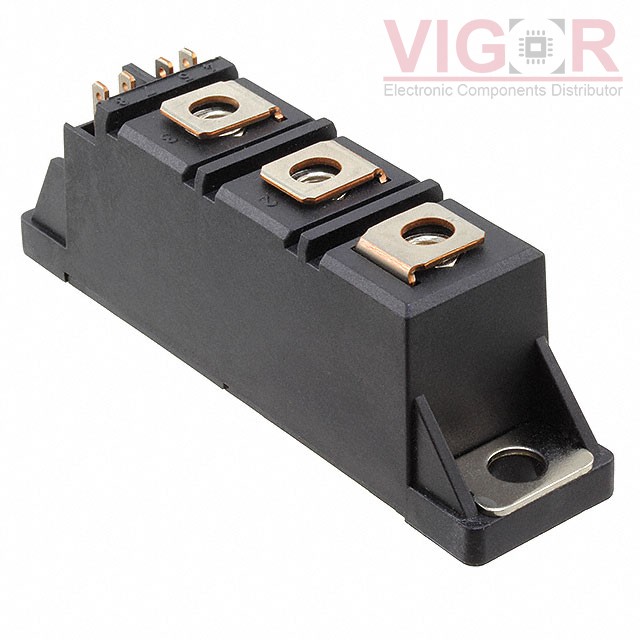

Image is for reference,
please contact us to get the real picture

Part No :

VS-VSKL136/08PBF

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
MODULE DIODE 135A INT-A-PAK
Catalog
Thyristors - SCRs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
VS-VSKL136/08PBF PDF
Availability
0 pieces
Unit Price
$66.89733

Current price of VS-VSKL136/08PBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VS-VSKL136/08PBF Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Structure:Series Connection - SCR/Diode
Number of SCRs, Diodes:1 SCR, 1 Diode
Voltage - Off State:800 V
Current - On State (It (AV)) (Max):135 A
Current - On State (It (RMS)) (Max):300 A
Voltage - Gate Trigger (Vgt) (Max):2.5 V
Current - Gate Trigger (Igt) (Max):150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):3200A, 3360A
Current - Hold (Ih) (Max):200 mA
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Chassis Mount
Package / Case:INT-A-PAK (3 + 4)
