VS-VSKH570-16PBF

VS-VSKH570-16PBF

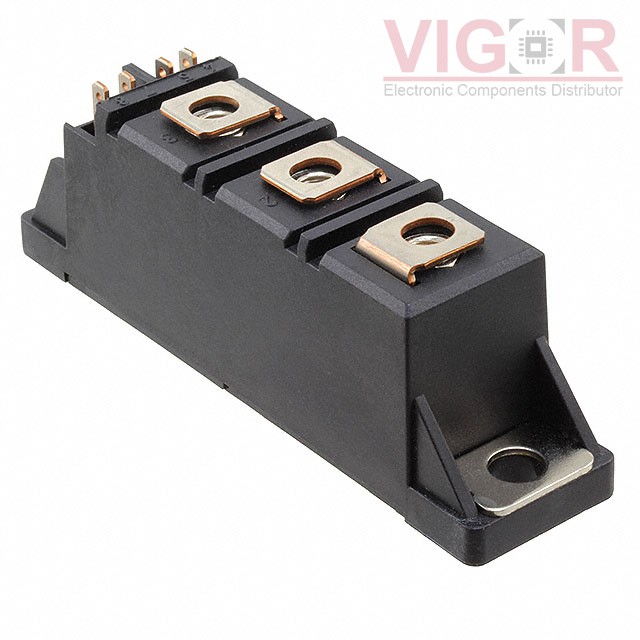

Image is for reference,
please contact us to get the real picture

Part No :

VS-VSKH570-16PBF

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
SCR MODULE 1.6KV 894A MAGNAPAK
Catalog
Thyristors - SCRs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
VS-VSKH570-16PBF PDF
Availability
0 pieces
Unit Price
$270.96000

Current price of VS-VSKH570-16PBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VS-VSKH570-16PBF Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Structure:Series Connection - SCR/Diode
Number of SCRs, Diodes:1 SCR, 1 Diode
Voltage - Off State:1.6 kV
Current - On State (It (AV)) (Max):570 A
Current - On State (It (RMS)) (Max):894 A
Voltage - Gate Trigger (Vgt) (Max):3 V
Current - Gate Trigger (Igt) (Max):200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):18000A, 18800A
Current - Hold (Ih) (Max):500 mA
Operating Temperature:-40°C ~ 135°C (TJ)
Mounting Type:Chassis Mount
Package / Case:SUPER MAGN-A-PAK
