PDT15116

PDT15116

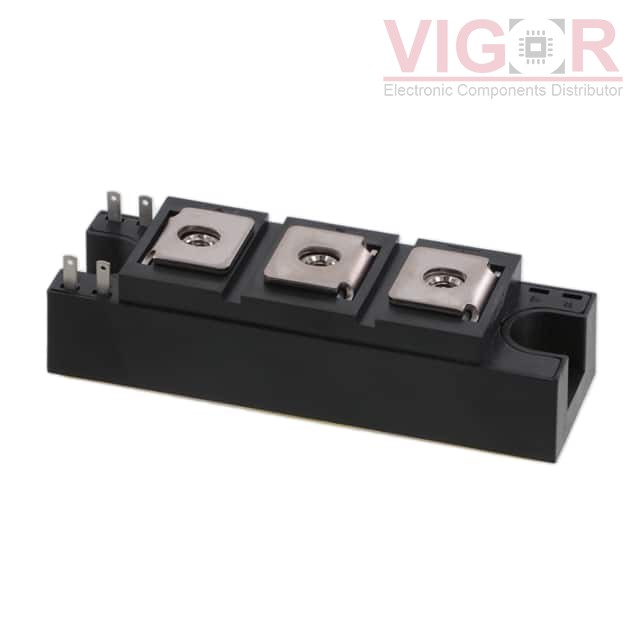

Image is for reference,
please contact us to get the real picture

Part No :

PDT15116

Manufacturer
KYOCERA Corporation
Description
THYRISTOR MODULE PHASE LEG T+T 1
Catalog
Thyristors - SCRs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
PDT15116 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PDT15116 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PDT15116 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Structure:Series Connection - All SCRs
Number of SCRs, Diodes:2 SCRs
Voltage - Off State:1.6 kV
Current - On State (It (AV)) (Max):150 A
Current - On State (It (RMS)) (Max):235 A
Voltage - Gate Trigger (Vgt) (Max):3 V
Current - Gate Trigger (Igt) (Max):150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):3200A @ 50Hz
Current - Hold (Ih) (Max):80 mA
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Chassis Mount
Package / Case:Module
