NTE5534A

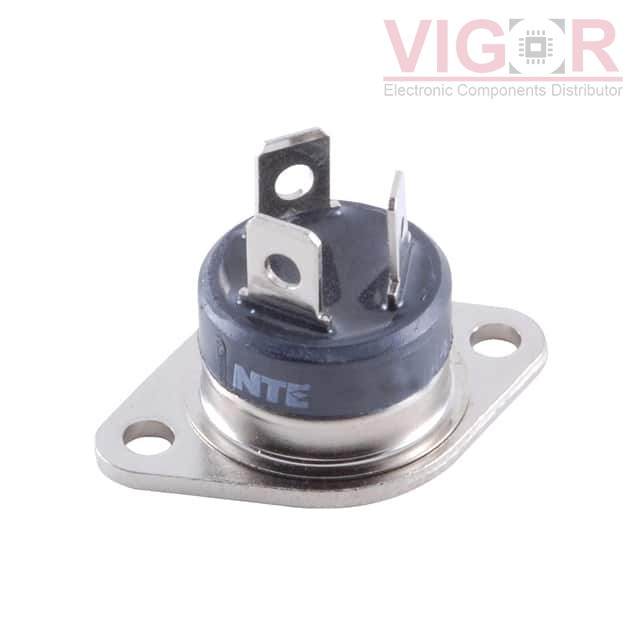

Image is for reference,
please contact us to get the real picture

Part No :: NTE5534A

Manufacturer: NTE Electronics, Inc.

Description: SCR 600V 50A TO3

Catalog: Thyristors - SCRs

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: NTE5534A PDF

Availability: 392 pieces

Unit Price: ~~$20.03000~~

Current price of NTE5534A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTE5534A Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Voltage - Off State:	600 V
Voltage - Gate Trigger (Vgt) (Max):	1.3 V
Current - Gate Trigger (Igt) (Max):	80 mA
Voltage - On State (Vtm) (Max):	1.9 V
Current - On State (It (AV)) (Max):	32 A
Current - On State (It (RMS)) (Max):	50 A
Current - Hold (Ih) (Max):	150 mA
Current - Off State (Max):	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm):	580A, 610A
SCR Type:	Standard Recovery
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	TO-3-Base
Supplier Device Package:	TO-3 (Isolated Flange)

Please confirm the specifications of the products when ordering.
