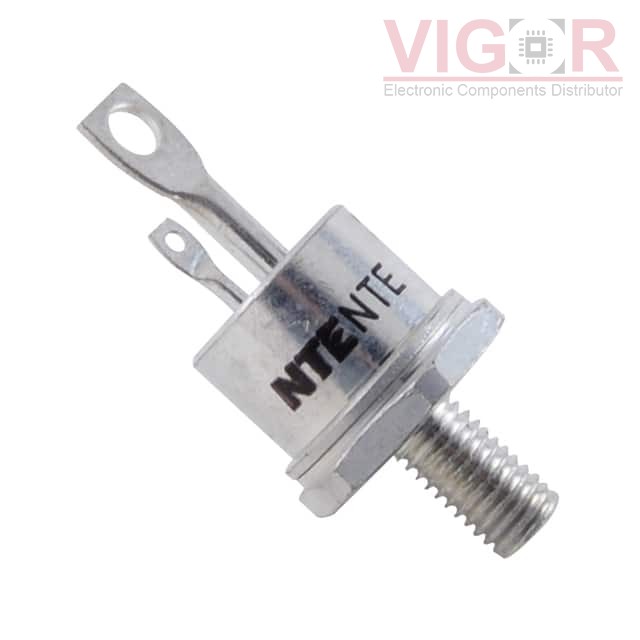

NTE5567

Image is for reference,
please contact us to get the real picture

Part No :: NTE5567

Manufacturer: NTE Electronics, Inc.

Description: SCR 200V 80A TO65

Catalog: Thyristors - SCRs

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: NTE5567 PDF

Availability: 9 pieces

Unit Price: ~~$35.93000~~

Current price of NTE5567 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTE5567 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Voltage - Off State:	200 V
Voltage - Gate Trigger (Vgt) (Max):	2.5 V
Current - Gate Trigger (Igt) (Max):	100 mA
Voltage - On State (Vtm) (Max):	1.6 V
Current - On State (It (AV)) (Max):	50 A
Current - On State (It (RMS)) (Max):	80 A
Current - Hold (Ih) (Max):	200 mA
Current - Off State (Max):	15 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	1200A @ 60Hz
SCR Type:	Standard Recovery
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Stud Mount
Package / Case:	TO-208AC, TO-65-3, Stud
Supplier Device Package:	TO-65

Please confirm the specifications of the products when ordering.
