NTE5596

NTE5596

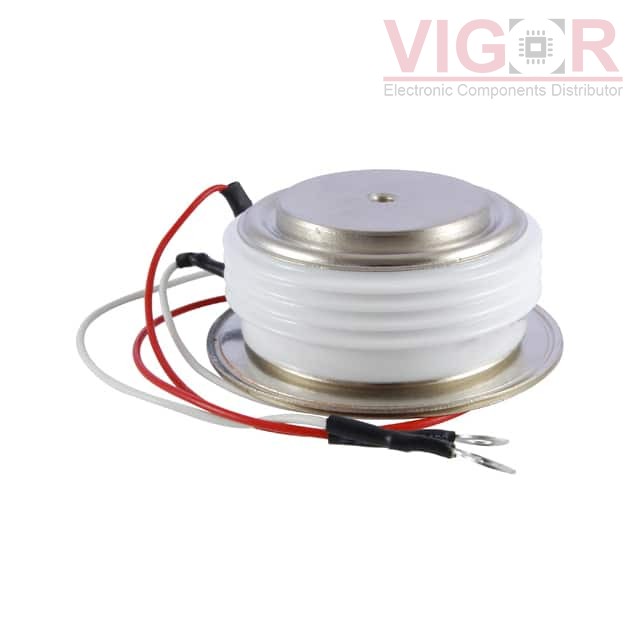

Image is for reference,
please contact us to get the real picture

Part No :

NTE5596

Manufacturer
NTE Electronics, Inc.
Description
SCR 1.2KV 16.4KA TO200AC
Catalog
Thyristors - SCRs
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
NTE5596 PDF
Availability
6 pieces
Unit Price
$311.46000

Current price of NTE5596 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTE5596 Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Voltage - Off State:1.2 kV
Voltage - Gate Trigger (Vgt) (Max):3 V
Current - Gate Trigger (Igt) (Max):200 mA
Voltage - On State (Vtm) (Max):1.75 V
Current - On State (It (AV)) (Max):820 A
Current - On State (It (RMS)) (Max):16.4 kA
Current - Hold (Ih) (Max):1 A
Current - Off State (Max):60 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):11500A, 12650A
SCR Type:Standard Recovery
Operating Temperature:-40°C ~ 125°C
Mounting Type:Chassis Mount
Package / Case:TO-200AC, B-PUK
Supplier Device Package:TO-200AC
