VS-ST1000C22K1L

VS-ST1000C22K1L

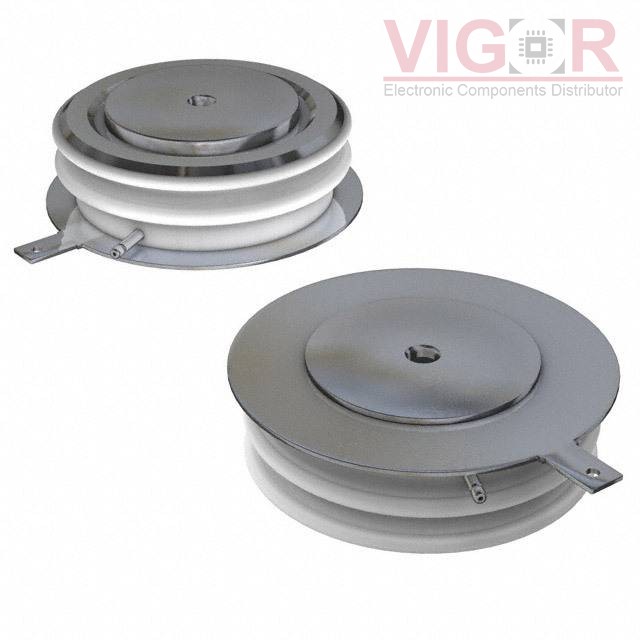

Image is for reference,
please contact us to get the real picture

Part No :

VS-ST1000C22K1L

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
SCR 2.2KV 2913A A24
Catalog
Thyristors - SCRs
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
VS-ST1000C22K1L PDF
Availability
0 pieces
Unit Price
$264.70000

Current price of VS-ST1000C22K1L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VS-ST1000C22K1L Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Voltage - Off State:2.2 kV
Voltage - Gate Trigger (Vgt) (Max):3 V
Current - Gate Trigger (Igt) (Max):200 mA
Voltage - On State (Vtm) (Max):1.8 V
Current - On State (It (AV)) (Max):1473 A
Current - On State (It (RMS)) (Max):2913 A
Current - Hold (Ih) (Max):600 mA
Current - Off State (Max):100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):17000A, 18100A
SCR Type:Standard Recovery
Operating Temperature:-40°C ~ 125°C
Mounting Type:Chassis Mount
Package / Case:TO-200AC, K-PUK, A-24
Supplier Device Package:A-24 (K-Puk)
