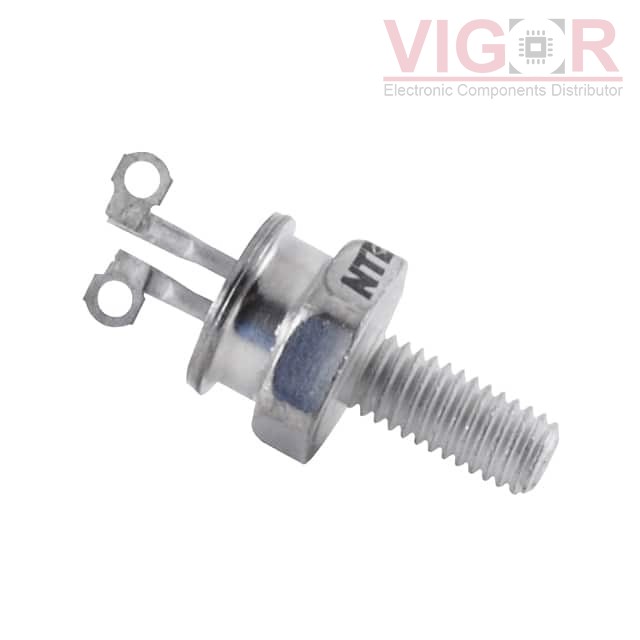

NTE5480

Image is for reference,
please contact us to get the real picture

Part No :: NTE5480

Manufacturer: NTE Electronics, Inc.

Description: SCR 25V 8A TO64

Catalog: Thyristors - SCRs

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: NTE5480 PDF

Availability: 10 pieces

Unit Price: ~~$15.47000~~

Current price of NTE5480 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTE5480 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Voltage - Off State:	25 V
Voltage - Gate Trigger (Vgt) (Max):	1.5 V
Current - Gate Trigger (Igt) (Max):	30 mA
Voltage - On State (Vtm) (Max):	2 V
Current - On State (It (AV)) (Max):	-
Current - On State (It (RMS)) (Max):	8 A
Current - Hold (Ih) (Max):	30 mA
Current - Off State (Max):	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm):	100A @ 60Hz
SCR Type:	Standard Recovery
Operating Temperature:	-40°C ~ 100°C (TJ)
Mounting Type:	Stud Mount
Package / Case:	TO-208AB, TO-64-3, Stud
Supplier Device Package:	TO-64

Please confirm the specifications of the products when ordering.
