S6S3RP

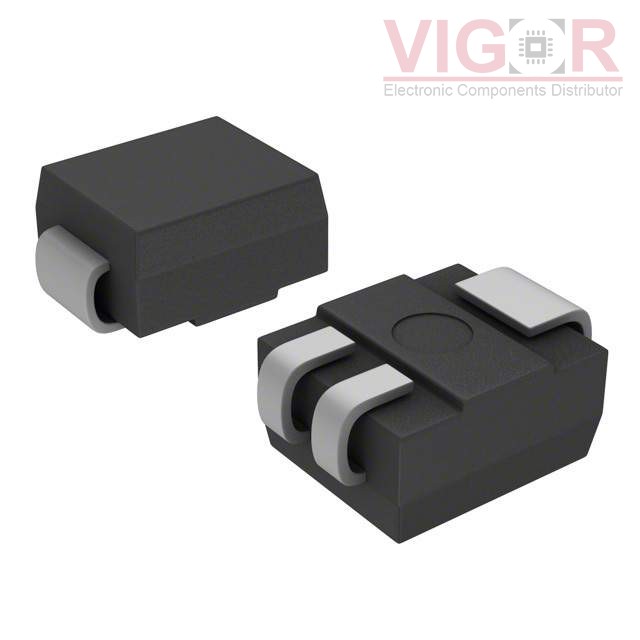

Image is for reference,
please contact us to get the real picture

Part No :: S6S3RP

Manufacturer: Wickmann / Littelfuse

Description: SCR 600V 800MA COMPAK

Catalog: Thyristors - SCRs

Shipped from: HK warehouse

Expected Shipping Date: Jul 14 - Jul 18 2025

DataSheet: S6S3RP PDF

Availability: 0 pieces

Unit Price: ~~$0.42944~~

Current price of S6S3RP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S6S3RP Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Voltage - Off State:	600 V
Voltage - Gate Trigger (Vgt) (Max):	800 mV
Current - Gate Trigger (Igt) (Max):	500 µA
Voltage - On State (Vtm) (Max):	1.7 V
Current - On State (It (AV)) (Max):	510 mA
Current - On State (It (RMS)) (Max):	800 mA
Current - Hold (Ih) (Max):	8 mA
Current - Off State (Max):	1 µA
Current - Non Rep. Surge 50, 60Hz (Itsm):	16A, 20A
SCR Type:	Sensitive Gate
Operating Temperature:	-40°C ~ 110°C
Mounting Type:	Surface Mount
Package / Case:	DO-214AA, SMB (3 Leads), Compak
Supplier Device Package:	Compak

Please confirm the specifications of the products when ordering.
