NTE5540

NTE5540

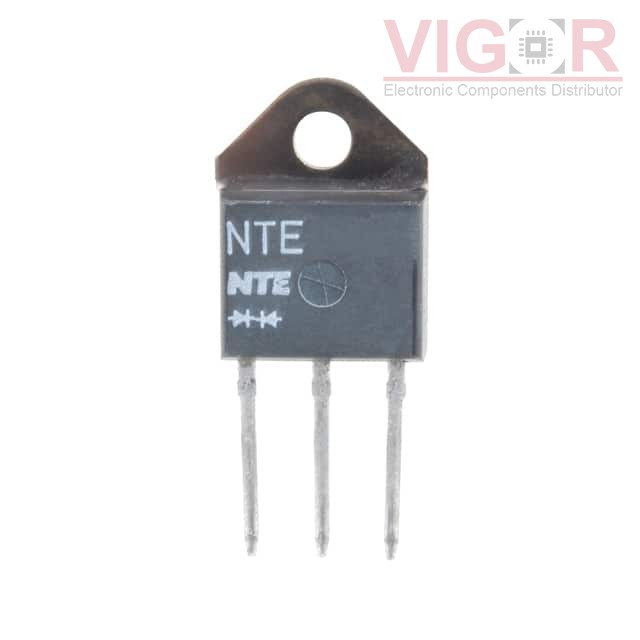

Image is for reference,
please contact us to get the real picture

Part No :

NTE5540

Manufacturer
NTE Electronics, Inc.
Description
SCR 800V 55A TO218
Catalog
Thyristors - SCRs
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
NTE5540 PDF
Availability
18 pieces
Unit Price
$17.00000

Current price of NTE5540 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTE5540 Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Voltage - Off State:800 V
Voltage - Gate Trigger (Vgt) (Max):1.5 V
Current - Gate Trigger (Igt) (Max):40 mA
Voltage - On State (Vtm) (Max):1.8 V
Current - On State (It (AV)) (Max):35 A
Current - On State (It (RMS)) (Max):55 A
Current - Hold (Ih) (Max):60 mA
Current - Off State (Max):20 µA
Current - Non Rep. Surge 50, 60Hz (Itsm):550A, 650A
SCR Type:Standard Recovery
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-218-3
Supplier Device Package:TO-218
