VS-70TPS12PBF

VS-70TPS12PBF

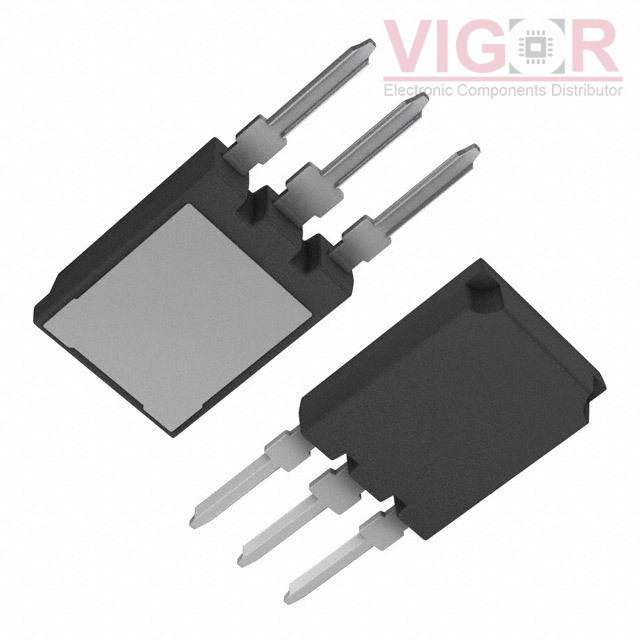

Image is for reference,
please contact us to get the real picture

Part No :

VS-70TPS12PBF

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
SCR 1.2KV 75A SUPER-247
Catalog
Thyristors - SCRs
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
VS-70TPS12PBF PDF
Availability
619 pieces
Unit Price
$8.33000

Current price of VS-70TPS12PBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VS-70TPS12PBF Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Voltage - Off State:1.2 kV
Voltage - Gate Trigger (Vgt) (Max):1.5 V
Current - Gate Trigger (Igt) (Max):100 mA
Voltage - On State (Vtm) (Max):1.4 V
Current - On State (It (AV)) (Max):70 A
Current - On State (It (RMS)) (Max):75 A
Current - Hold (Ih) (Max):200 mA
Current - Off State (Max):1 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):1400A @ 50Hz
SCR Type:Standard Recovery
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Package / Case:TO-274AA
Supplier Device Package:SUPER-247™ (TO-274AA)
