BTW69-1000RG

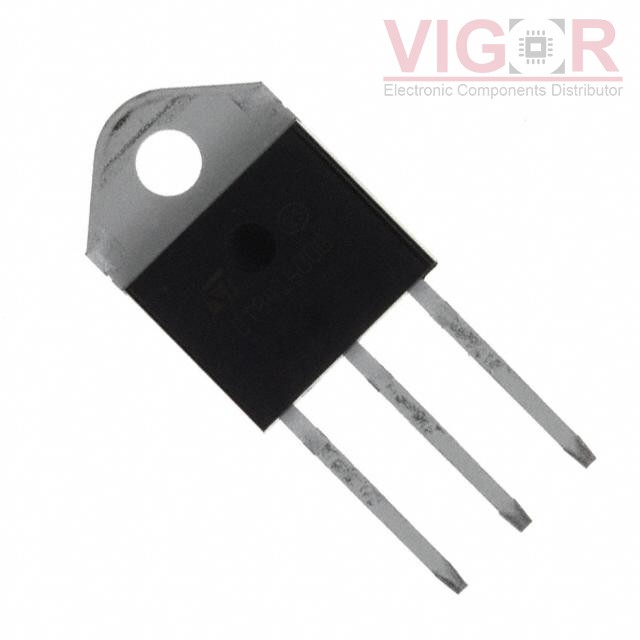

Image is for reference,
please contact us to get the real picture

Part No :: BTW69-1000RG

Manufacturer: STMicroelectronics

Description: SCR 1KV 50A TOP3

Catalog: Thyristors - SCRs

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: BTW69-1000RG PDF

Availability: 0 pieces

Unit Price: ~~$8.78500~~

Current price of BTW69-1000RG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BTW69-1000RG Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Voltage - Off State:	1 kV
Voltage - Gate Trigger (Vgt) (Max):	1.3 V
Current - Gate Trigger (Igt) (Max):	80 mA
Voltage - On State (Vtm) (Max):	1.9 V
Current - On State (It (AV)) (Max):	32 A
Current - On State (It (RMS)) (Max):	50 A
Current - Hold (Ih) (Max):	150 mA
Current - Off State (Max):	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm):	580A, 610A
SCR Type:	Standard Recovery
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	TOP-3
Supplier Device Package:	TOP3

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
