VS-ST1000C22K1

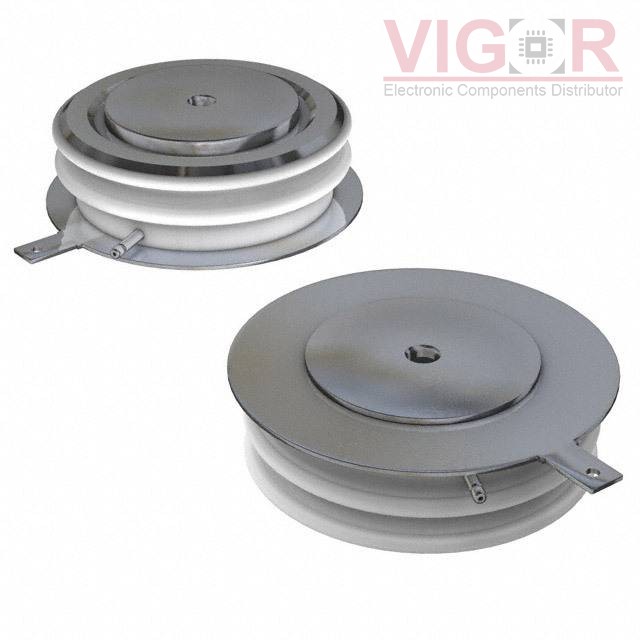

Image is for reference,
please contact us to get the real picture

Part No :: VS-ST1000C22K1

Manufacturer: Vishay General Semiconductor – Diodes Division

Description: SCR 2.2KV 2913A A24

Catalog: Thyristors - SCRs

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: VS-ST1000C22K1 PDF

Availability: 0 pieces

Unit Price: ~~$264.70000~~

Current price of VS-ST1000C22K1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VS-ST1000C22K1 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Voltage - Off State:	2.2 kV
Voltage - Gate Trigger (Vgt) (Max):	3 V
Current - Gate Trigger (Igt) (Max):	200 mA
Voltage - On State (Vtm) (Max):	1.8 V
Current - On State (It (AV)) (Max):	1473 A
Current - On State (It (RMS)) (Max):	2913 A
Current - Hold (Ih) (Max):	600 mA
Current - Off State (Max):	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	17000A, 18100A
SCR Type:	Standard Recovery
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Chassis Mount
Package / Case:	TO-200AC, K-PUK, A-24
Supplier Device Package:	A-24 (K-Puk)

Please confirm the specifications of the products when ordering.
