SV6020L1TP

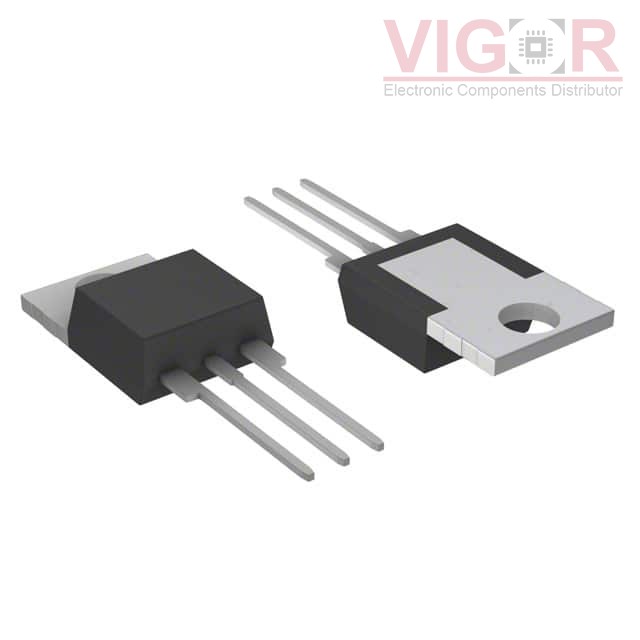

Image is for reference,
please contact us to get the real picture

Part No :: SV6020L1TP

Manufacturer: Wickmann / Littelfuse

Description: SCR 20A 600V HI TEMP TO220L

Catalog: Thyristors - SCRs

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: SV6020L1TP PDF

Availability: 1000 pieces

Unit Price: ~~$3.01000~~

Current price of SV6020L1TP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SV6020L1TP Specifications

Type	Description
Series:	SV
Package:	Tube
Part Status:	Active
Voltage - Off State:	600 V
Voltage - Gate Trigger (Vgt) (Max):	1.5 V
Current - Gate Trigger (Igt) (Max):	6 mA
Voltage - On State (Vtm) (Max):	1.6 V
Current - On State (It (AV)) (Max):	12.8 A
Current - On State (It (RMS)) (Max):	20 A
Current - Hold (Ih) (Max):	22 mA
Current - Off State (Max):	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm):	225A, 300A
SCR Type:	Sensitive Gate
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-220-3 Isolated Tab
Supplier Device Package:	ITO-220AB

Please confirm the specifications of the products when ordering.
