ETZ950N22P70HPSA1

ETZ950N22P70HPSA1

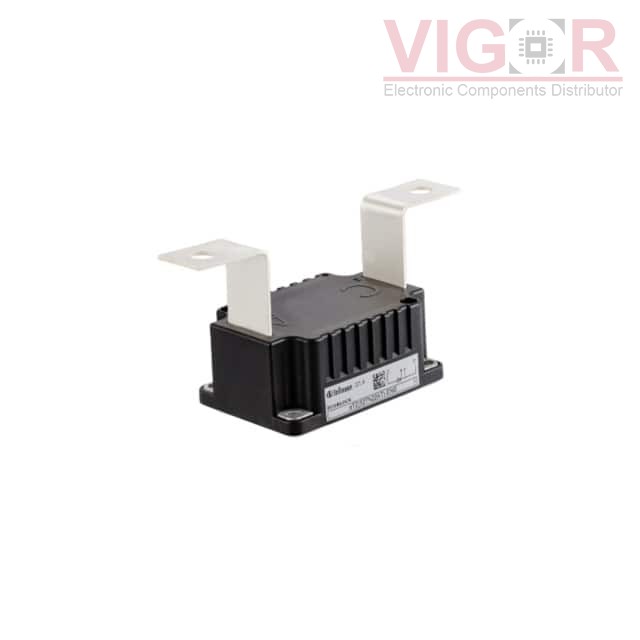

Image is for reference,
please contact us to get the real picture

Part No :

ETZ950N22P70HPSA1

Manufacturer
IR (Infineon Technologies)
Description
SCR 2.2KV 1000A PB70ECO-1
Catalog
Thyristors - SCRs
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
ETZ950N22P70HPSA1 PDF
Availability
0 pieces
Unit Price
$401.64000

Current price of ETZ950N22P70HPSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ETZ950N22P70HPSA1 Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Voltage - Off State:2.2 kV
Voltage - Gate Trigger (Vgt) (Max):2 V
Current - Gate Trigger (Igt) (Max):250 mA
Voltage - On State (Vtm) (Max):1.75 V
Current - On State (It (AV)) (Max):923 A
Current - On State (It (RMS)) (Max):1000 A
Current - Hold (Ih) (Max):500 mA
Current - Off State (Max):-
Current - Non Rep. Surge 50, 60Hz (Itsm):30000A @ 50Hz
SCR Type:Standard Recovery
Operating Temperature:135°C (TJ)
Mounting Type:Chassis Mount
Package / Case:Module
Supplier Device Package:BG-PB70ECO-1
