NTE5509

NTE5509

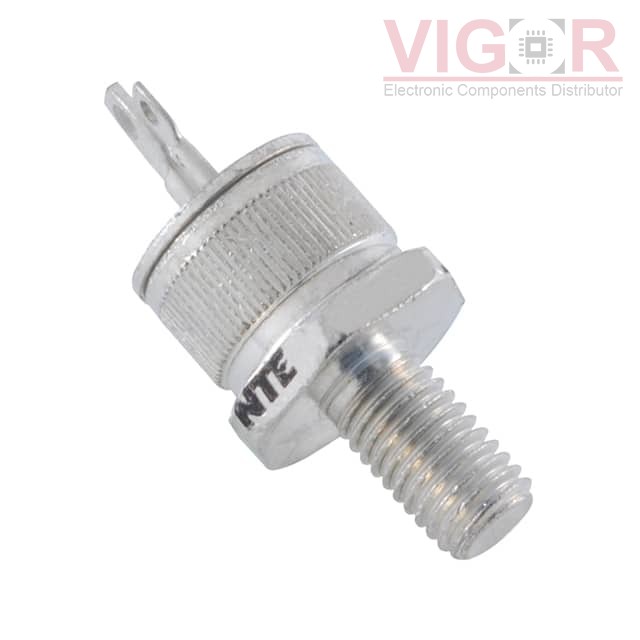

Image is for reference,
please contact us to get the real picture

Part No :

NTE5509

Manufacturer
NTE Electronics, Inc.
Description
SCR 600V 16A TO48
Catalog
Thyristors - SCRs
Shipped from
HK warehouse
Expected Shipping Date
Aug 15 - Aug 19 2025
DataSheet
NTE5509 PDF
Availability
25 pieces
Unit Price
$23.39000

Current price of NTE5509 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTE5509 Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Voltage - Off State:600 V
Voltage - Gate Trigger (Vgt) (Max):3 V
Current - Gate Trigger (Igt) (Max):25 mA
Voltage - On State (Vtm) (Max):1.5 V
Current - On State (It (AV)) (Max):25 A
Current - On State (It (RMS)) (Max):-
Current - Hold (Ih) (Max):20 mA
Current - Off State (Max):4 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):200A @ 60Hz
SCR Type:Standard Recovery
Operating Temperature:-65°C ~ 125°C (TJ)
Mounting Type:Stud Mount
Package / Case:TO-208AA, TO-48-3, Stud
Supplier Device Package:TO-48
