UP0338300L

UP0338300L

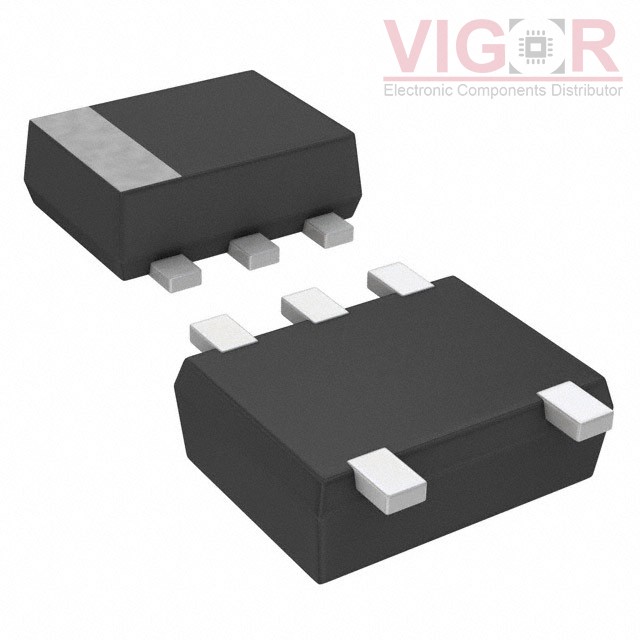

Image is for reference,
please contact us to get the real picture

Part No :

UP0338300L

Manufacturer
Panasonic
Description
TRANS PREBIAS NPN/PNP SSMINI5
Catalog
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
UP0338300L PDF
Availability
1672 pieces
Unit Price
$0.24000

Current price of UP0338300L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

UP0338300L Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Transistor Type:1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max):100mA
Voltage - Collector Emitter Breakdown (Max):50V
Resistor - Base (R1):47kOhms, 4.7kOhms
Resistor - Emitter Base (R2):47kOhms, 10kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:80 @ 5mA, 10V / 30 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic:250mV @ 300µA, 10mA
Current - Collector Cutoff (Max):500nA
Frequency - Transition:150MHz, 80MHz
Power - Max:125mW
Mounting Type:Surface Mount
Package / Case:SOT-665
Supplier Device Package:SSMini5-F2
