DCX114YK-7-F

DCX114YK-7-F

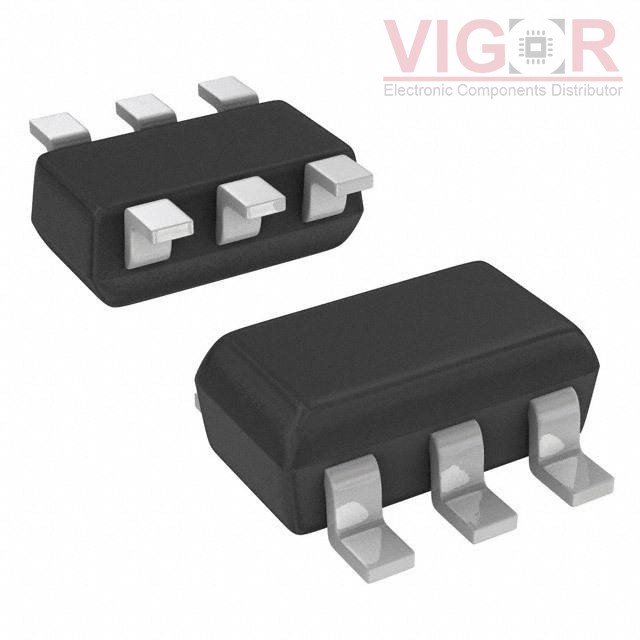

Image is for reference,
please contact us to get the real picture

Part No :

DCX114YK-7-F

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
TRANS NPN/PNP PREBIAS 0.3W SC74R
Catalog
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
DCX114YK-7-F PDF
Availability
0 pieces
Unit Price
$0.07632

Current price of DCX114YK-7-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DCX114YK-7-F Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Transistor Type:1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max):100mA
Voltage - Collector Emitter Breakdown (Max):50V
Resistor - Base (R1):10kOhms
Resistor - Emitter Base (R2):47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:68 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic:300mV @ 250µA, 5mA
Current - Collector Cutoff (Max):500nA
Frequency - Transition:250MHz
Power - Max:300mW
Mounting Type:Surface Mount
Package / Case:SC-74, SOT-457
Supplier Device Package:SC-74R
