RN46A1(TE85L,F)

RN46A1(TE85L,F)

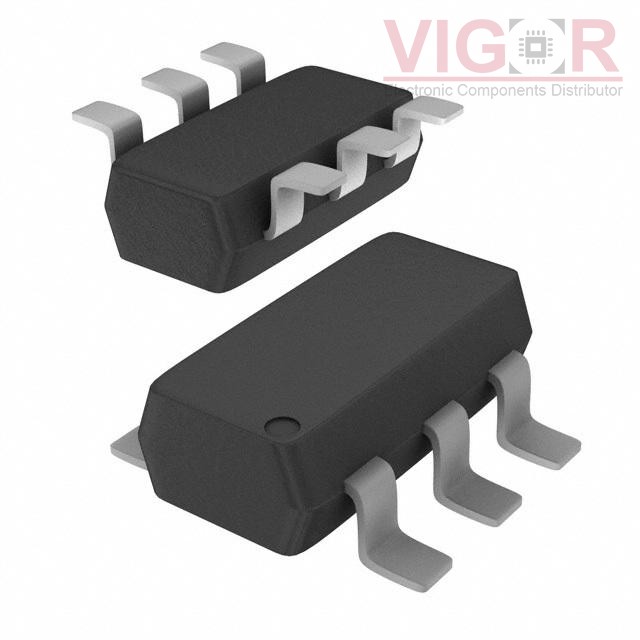

Image is for reference,
please contact us to get the real picture

Part No :

RN46A1(TE85L,F)

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
PNP + NPN BRT, Q1BSR=22KΩ, Q1BER
Catalog
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
RN46A1(TE85L,F) PDF
Availability
3000 pieces
Unit Price
$0.36000

Current price of RN46A1(TE85L,F) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RN46A1(TE85L,F) Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Transistor Type:1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max):100mA
Voltage - Collector Emitter Breakdown (Max):50V
Resistor - Base (R1):22kOhms, 10kOhms
Resistor - Emitter Base (R2):22kOhms, 10kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:70 @ 10mA, 5V / 50 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic:300mV @ 250µA, 5mA
Current - Collector Cutoff (Max):500nA
Frequency - Transition:200MHz, 250MHz
Power - Max:300mW
Mounting Type:Surface Mount
Package / Case:SC-74, SOT-457
Supplier Device Package:SM6
