UP0339000L

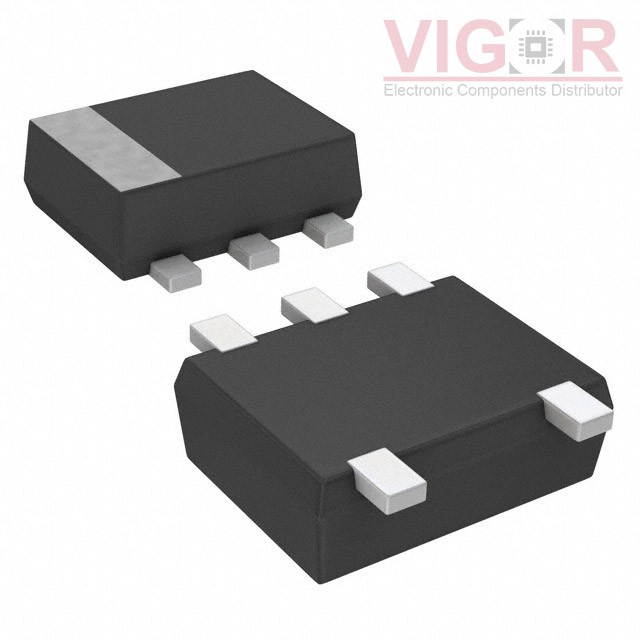

Image is for reference,
please contact us to get the real picture

Part No :: UP0339000L

Manufacturer: Panasonic

Description: TRANS PREBIAS NPN/PNP SSMINI5

Catalog: Transistors - Bipolar (BJT) - Arrays, Pre-Biased

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: UP0339000L PDF

Availability: 2120 pieces

Unit Price: ~~$0.24000~~

Current price of UP0339000L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

UP0339000L Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Transistor Type:	1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max):	100mA
Voltage - Collector Emitter Breakdown (Max):	50V
Resistor - Base (R1):	47kOhms, 10kOhms
Resistor - Emitter Base (R2):	47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:	80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic:	250mV @ 300µA, 10mA
Current - Collector Cutoff (Max):	500nA
Frequency - Transition:	150MHz, 80MHz
Power - Max:	125mW
Mounting Type:	Surface Mount
Package / Case:	SOT-665
Supplier Device Package:	SSMini5-F2

Please confirm the specifications of the products when ordering.
