RN1511(TE85L,F)

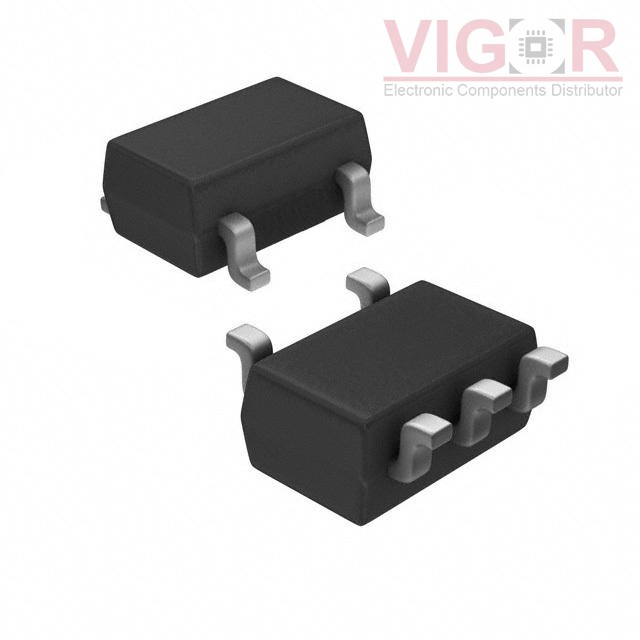

Image is for reference,
please contact us to get the real picture

Part No :: RN1511(TE85L,F)

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: TRANS 2NPN PREBIAS 0.3W SMV

Catalog: Transistors - Bipolar (BJT) - Arrays, Pre-Biased

Shipped from: HK warehouse

Expected Shipping Date: Jul 08 - Jul 12 2025

DataSheet: RN1511(TE85L,F) PDF

Availability: 1788 pieces

Unit Price: ~~$0.48000~~

Current price of RN1511(TE85L,F) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RN1511(TE85L,F) Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Transistor Type:	2 NPN - Pre-Biased (Dual) (Emitter Coupled)
Current - Collector (Ic) (Max):	100mA
Voltage - Collector Emitter Breakdown (Max):	50V
Resistor - Base (R1):	10kOhms
Resistor - Emitter Base (R2):	-
DC Current Gain (hFE) (Min) @ Ic, Vce:	120 @ 1mA, 5V
Vce Saturation (Max) @ Ib, Ic:	300mV @ 250µA, 5mA
Current - Collector Cutoff (Max):	100nA (ICBO)
Frequency - Transition:	250MHz
Power - Max:	300mW
Mounting Type:	Surface Mount
Package / Case:	SC-74A, SOT-753
Supplier Device Package:	SMV

Please confirm the specifications of the products when ordering.
