UMC5N-7

UMC5N-7

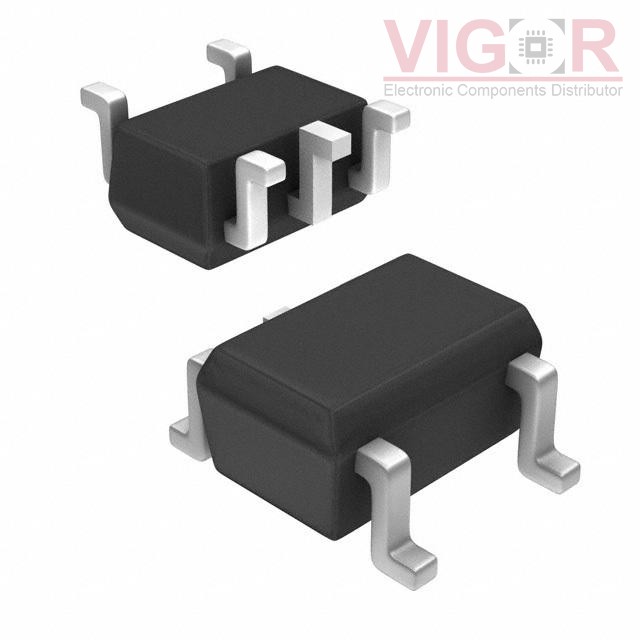

Image is for reference,
please contact us to get the real picture

Part No :

UMC5N-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
TRANS NPN/PNP PREBIAS SOT353
Catalog
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
UMC5N-7 PDF
Availability
0 pieces
Unit Price
$0.42000

Current price of UMC5N-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

UMC5N-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Transistor Type:1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max):100mA
Voltage - Collector Emitter Breakdown (Max):50V
Resistor - Base (R1):47kOhms, 4.7kOhms
Resistor - Emitter Base (R2):47kOhms, 10kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:68 @ 5mA, 5V / 30 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic:300mV @ 500µA, 10mA
Current - Collector Cutoff (Max):500nA
Frequency - Transition:250MHz
Power - Max:150mW
Mounting Type:Surface Mount
Package / Case:5-TSSOP, SC-70-5, SOT-353
Supplier Device Package:SOT-353
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT DMA261020R

DMA261020R

TRANS PREBIAS DUAL PNP MINI5

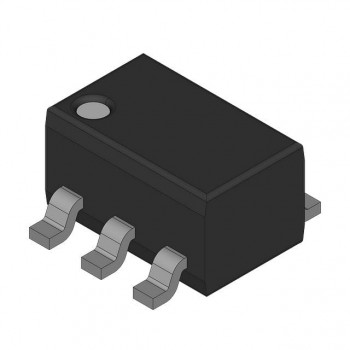

HOT NHUMD13X

NHUMD13X

NHUMD13/SOT363/SC-88

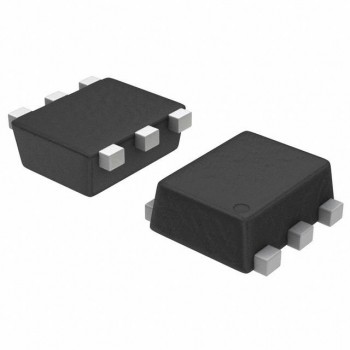

HOT NSBC143EPDP6T5G
