STA485A

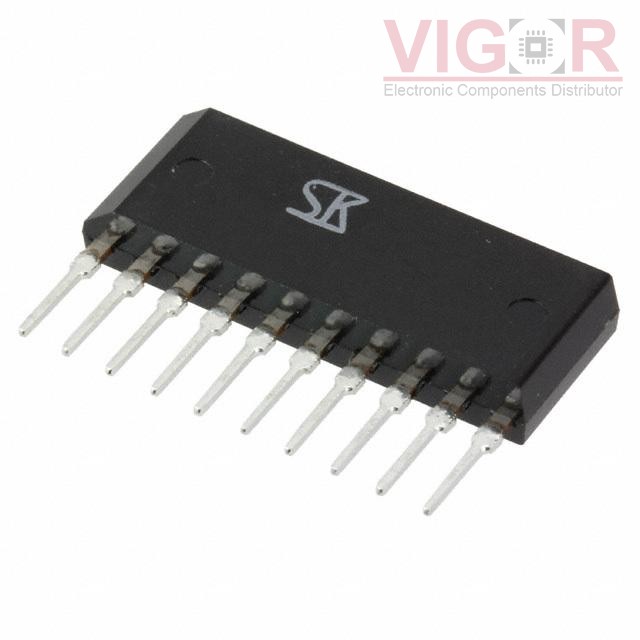

Image is for reference,
please contact us to get the real picture

Part No :: STA485A

Manufacturer: Sanken Electric Co., Ltd.

Description: TRANS 4NPN DARL 100V 1A 10-SIP

Catalog: Transistors - Bipolar (BJT) - Arrays

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: STA485A PDF

Availability: 172 pieces

Unit Price: ~~$1.63000~~

Current price of STA485A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STA485A Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Transistor Type:	4 NPN Darlington (Quad)
Current - Collector (Ic) (Max):	1A
Voltage - Collector Emitter Breakdown (Max):	100V
Vce Saturation (Max) @ Ib, Ic:	1.5V @ 1mA, 500mA
Current - Collector Cutoff (Max):	10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	2000 @ 500mA, 4V
Power - Max:	4W
Frequency - Transition:	50MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	10-SIP
Supplier Device Package:	10-SIP

Please confirm the specifications of the products when ordering.
