PMBT3946VPN,115

PMBT3946VPN,115

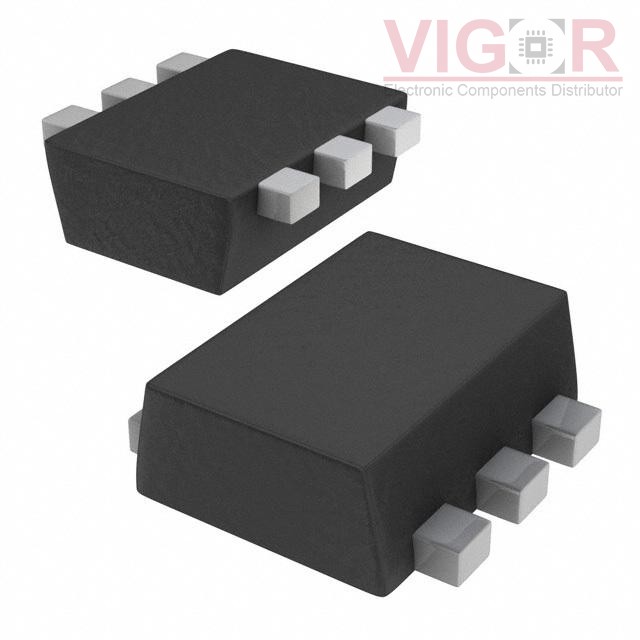

Image is for reference,
please contact us to get the real picture

Part No :

PMBT3946VPN,115

Manufacturer
Nexperia
Description
TRANS NPN/PNP 40V 0.2A SOT666
Catalog
Transistors - Bipolar (BJT) - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
PMBT3946VPN,115 PDF
Availability
1223600 pieces
Unit Price
$0.26000

Current price of PMBT3946VPN,115 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PMBT3946VPN,115 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Transistor Type:NPN, PNP
Current - Collector (Ic) (Max):200mA
Voltage - Collector Emitter Breakdown (Max):40V
Vce Saturation (Max) @ Ib, Ic:300mV @ 5mA, 50mA / 400mV @ 5mA, 50mA
Current - Collector Cutoff (Max):50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 10mA, 1V
Power - Max:240mW
Frequency - Transition:300MHz, 250MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SOT-563, SOT-666
Supplier Device Package:SOT-666
