NSS60101DMTTBG

NSS60101DMTTBG

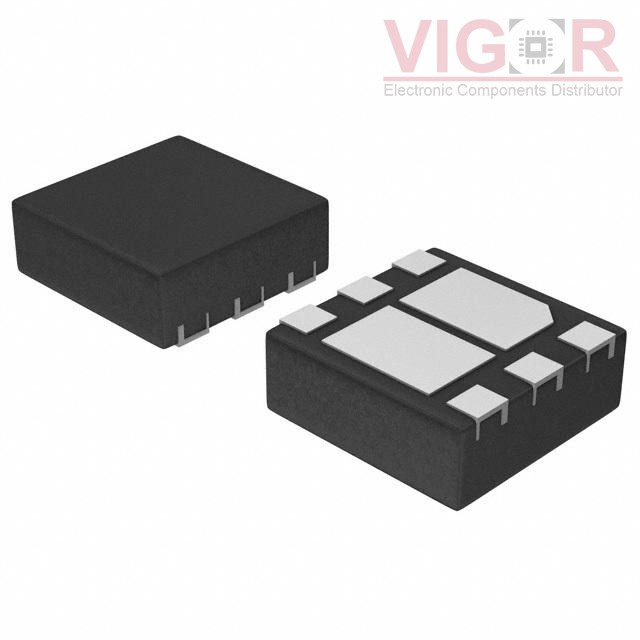

Image is for reference,
please contact us to get the real picture

Part No :

NSS60101DMTTBG

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
TRANS 2NPN 60V 1A 6WDFN
Catalog
Transistors - Bipolar (BJT) - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
NSS60101DMTTBG PDF
Availability
309130000 pieces
Unit Price
$0.67000

Current price of NSS60101DMTTBG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NSS60101DMTTBG Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Transistor Type:2 NPN (Dual)
Current - Collector (Ic) (Max):1A
Voltage - Collector Emitter Breakdown (Max):60V
Vce Saturation (Max) @ Ib, Ic:180mV @ 100mA, 1A
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:120 @ 500mA, 2V
Power - Max:2.27W
Frequency - Transition:180MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:6-WDFN Exposed Pad
Supplier Device Package:6-WDFN (2x2)
