2SC5509-A

2SC5509-A

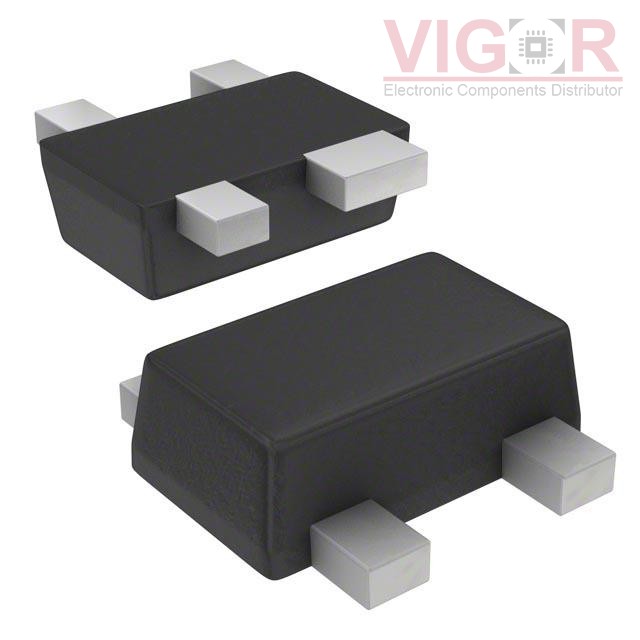

Image is for reference,
please contact us to get the real picture

Part No :

2SC5509-A

Manufacturer
CEL (California Eastern Laboratories)
Description
RF TRANS NPN 3.3V 15GHZ SOT343F
Catalog
Transistors - Bipolar (BJT) - RF
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
2SC5509-A PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 2SC5509-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2SC5509-A Specifications
Type Description
Series:-
Package:Strip
Part Status:Obsolete
Transistor Type:NPN
Voltage - Collector Emitter Breakdown (Max):3.3V
Frequency - Transition:15GHz
Noise Figure (dB Typ @ f):1.2dB @ 2GHz
Gain:14dB
Power - Max:190mW
DC Current Gain (hFE) (Min) @ Ic, Vce:50 @ 10mA, 2V
Current - Collector (Ic) (Max):100mA
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SOT-343F
Supplier Device Package:-
