NE46134-AZ

NE46134-AZ

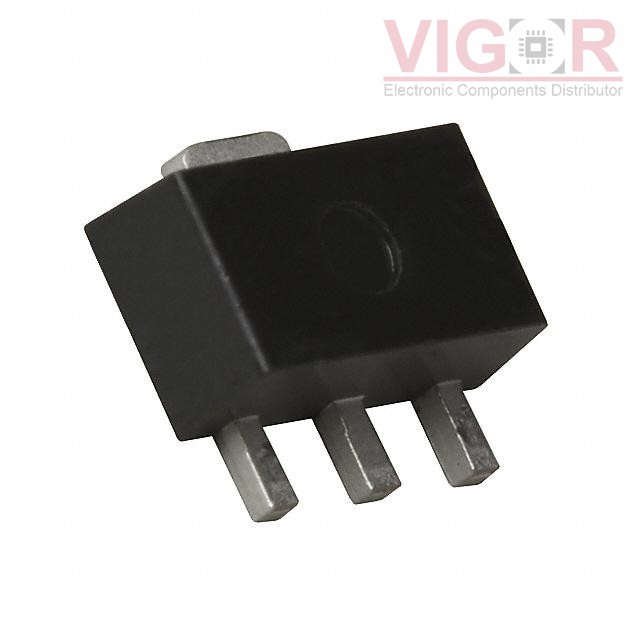

Image is for reference,
please contact us to get the real picture

Part No :

NE46134-AZ

Manufacturer
CEL (California Eastern Laboratories)
Description
RF TRANS NPN 15V 5.5GHZ SOT89
Catalog
Transistors - Bipolar (BJT) - RF
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
NE46134-AZ PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of NE46134-AZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NE46134-AZ Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Transistor Type:NPN
Voltage - Collector Emitter Breakdown (Max):15V
Frequency - Transition:5.5GHz
Noise Figure (dB Typ @ f):1.5dB ~ 2dB @ 500MHz ~ 1GHz
Gain:7dB
Power - Max:2W
DC Current Gain (hFE) (Min) @ Ic, Vce:40 @ 50mA, 10V
Current - Collector (Ic) (Max):250mA
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:SOT-89
