MAX2601ESA-T

MAX2601ESA-T

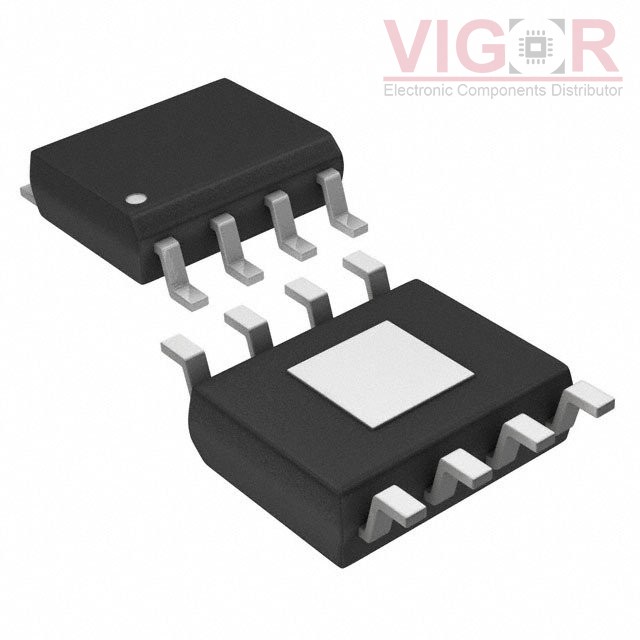

Image is for reference,
please contact us to get the real picture

Part No :

MAX2601ESA-T

Manufacturer
Maxim Integrated
Description
RF TRANS NPN 15V 1GHZ 8SOIC
Catalog
Transistors - Bipolar (BJT) - RF
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
MAX2601ESA-T PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of MAX2601ESA-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MAX2601ESA-T Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
Transistor Type:NPN
Voltage - Collector Emitter Breakdown (Max):15V
Frequency - Transition:1GHz
Noise Figure (dB Typ @ f):3.3dB @ 836MHz
Gain:11.6dB
Power - Max:6.4W
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 250mA, 3V
Current - Collector (Ic) (Max):1.2A
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package:8-SOIC-EP
