DRC9152Z0L

DRC9152Z0L

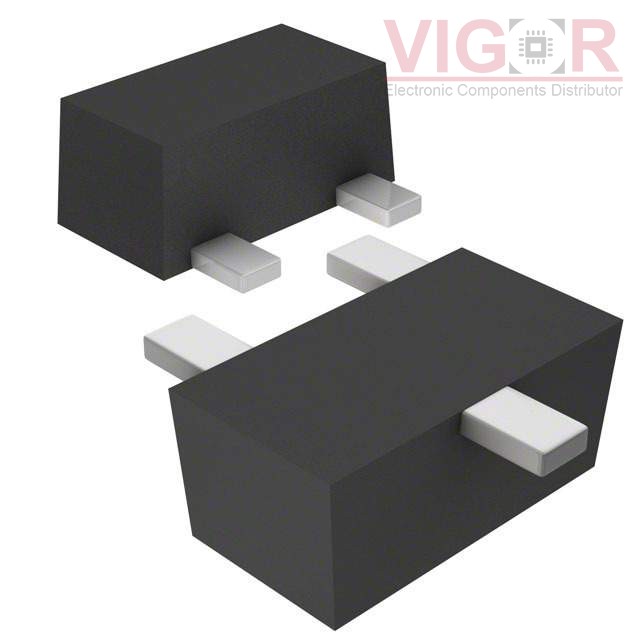

Image is for reference,
please contact us to get the real picture

Part No :

DRC9152Z0L

Manufacturer
Panasonic
Description
TRANS PREBIAS NPN 125MW SSMINI3
Catalog
Transistors - Bipolar (BJT) - Single, Pre-Biased
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
DRC9152Z0L PDF
Availability
6782 pieces
Unit Price
$0.41000

Current price of DRC9152Z0L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DRC9152Z0L Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Discontinued at Digi-Key
Transistor Type:NPN - Pre-Biased
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):50 V
Resistor - Base (R1):510 Ohms
Resistor - Emitter Base (R2):5.1 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:20 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic:250mV @ 500µA, 10mA
Current - Collector Cutoff (Max):500nA
Frequency - Transition:-
Power - Max:125 mW
Mounting Type:Surface Mount
Package / Case:SC-89, SOT-490
Supplier Device Package:SSMini3-F3-B
