2SC3649S-TD-E

2SC3649S-TD-E

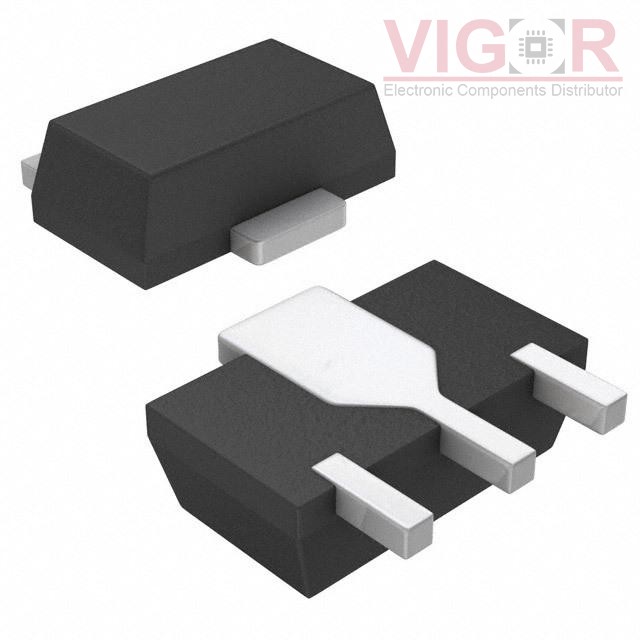

Image is for reference,
please contact us to get the real picture

Part No :

2SC3649S-TD-E

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
TRANS NPN 160V 1.5A SOT89-3
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
2SC3649S-TD-E PDF
Availability
629 pieces
Unit Price
$0.73000

Current price of 2SC3649S-TD-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2SC3649S-TD-E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Transistor Type:NPN
Current - Collector (Ic) (Max):1.5 A
Voltage - Collector Emitter Breakdown (Max):160 V
Vce Saturation (Max) @ Ib, Ic:450mV @ 50mA, 500mA
Current - Collector Cutoff (Max):1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 100mA, 5V
Power - Max:500 mW
Frequency - Transition:120MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:PCP
