2SD2643

2SD2643

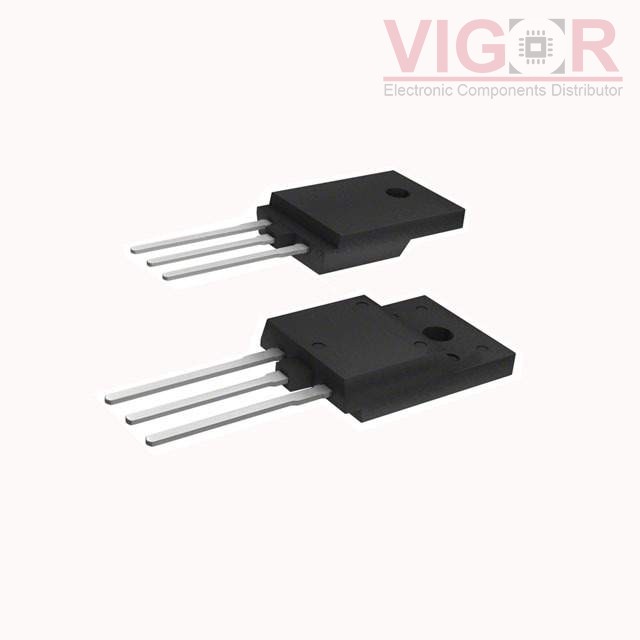

Image is for reference,
please contact us to get the real picture

Part No :

2SD2643

Manufacturer
Sanken Electric Co., Ltd.
Description
TRANS NPN DARL 110V 6A TO3PF
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
2SD2643 PDF
Availability
0 pieces
Unit Price
$1.50256

Current price of 2SD2643 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2SD2643 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Transistor Type:NPN - Darlington
Current - Collector (Ic) (Max):6 A
Voltage - Collector Emitter Breakdown (Max):110 V
Vce Saturation (Max) @ Ib, Ic:2.5V @ 5mA, 5A
Current - Collector Cutoff (Max):100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:5000 @ 5A, 4V
Power - Max:60 W
Frequency - Transition:60MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3P-3 Full Pack
Supplier Device Package:TO-3PF
