NTE2320

NTE2320

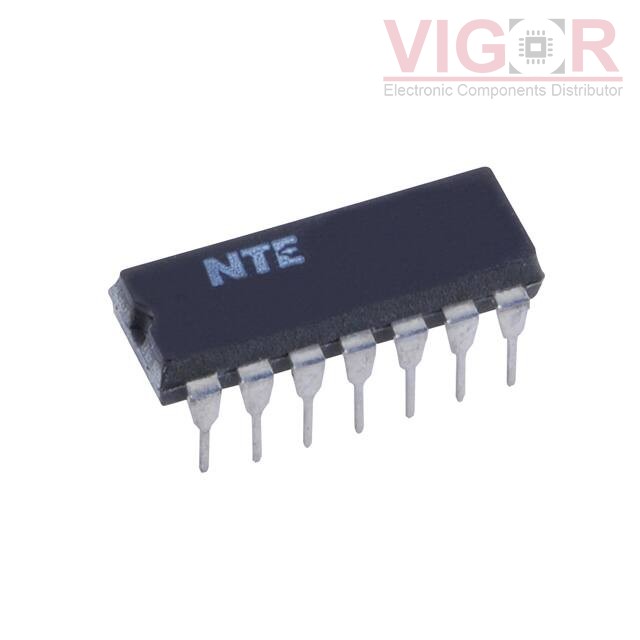

Image is for reference,
please contact us to get the real picture

Part No :

NTE2320

Manufacturer
NTE Electronics, Inc.
Description
TRANS NPN 30V 500MA 14DIP
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
NTE2320 PDF
Availability
95 pieces
Unit Price
$4.70000

Current price of NTE2320 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTE2320 Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Transistor Type:NPN
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):30 V
Vce Saturation (Max) @ Ib, Ic:1.4V @ 30mA, 300mA
Current - Collector Cutoff (Max):30nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 150mA, 10V
Power - Max:1.25 W
Frequency - Transition:350MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:14-DIP (0.300", 7.62mm)
Supplier Device Package:14-PDIP
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT BC846BR TR PBFREE

BC846BR TR PBFREE

TRANSISTOR-SMALL SINGAL

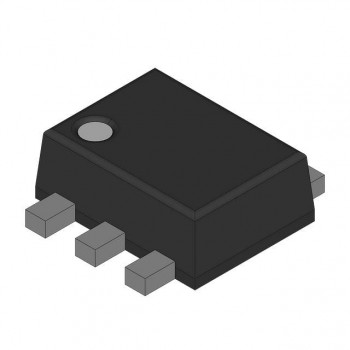

HOT NSBC143TDXV6T5

NSBC143TDXV6T5

SMALL SIGNAL BIPOLAR TRANSISTOR

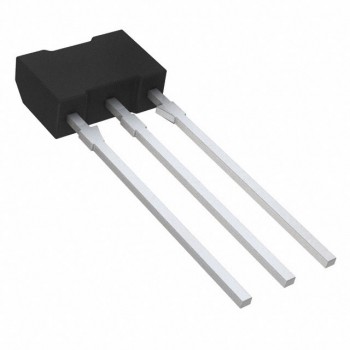

HOT 2SA1770T-AN
