2SB13980PA

2SB13980PA

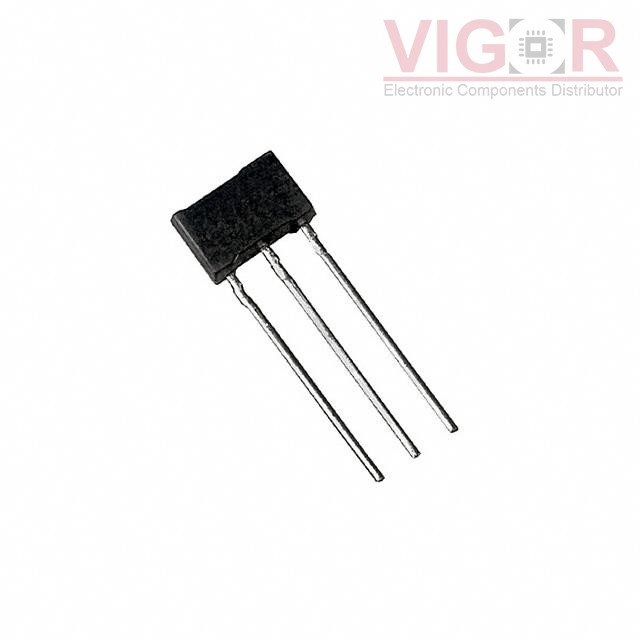

Image is for reference,
please contact us to get the real picture

Part No :

2SB13980PA

Manufacturer
Panasonic
Description
TRANS PNP 25V 5A MT-2
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
2SB13980PA PDF
Availability
3330 pieces
Unit Price
$0.64000

Current price of 2SB13980PA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2SB13980PA Specifications
Type Description
Series:-
Package:Cut Tape (CT)Tape & Box (TB)
Part Status:Obsolete
Transistor Type:PNP
Current - Collector (Ic) (Max):5 A
Voltage - Collector Emitter Breakdown (Max):25 V
Vce Saturation (Max) @ Ib, Ic:1V @ 100mA, 3A
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:90 @ 2A, 2V
Power - Max:1 W
Frequency - Transition:120MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:3-SIP
Supplier Device Package:MT-2-A1
