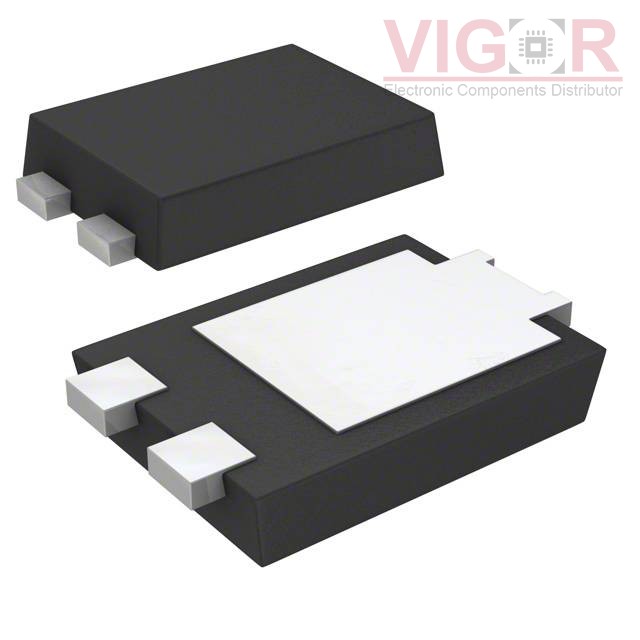

DXT690BP5Q-13

DXT690BP5Q-13

Image is for reference,
please contact us to get the real picture

Part No :

DXT690BP5Q-13

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
TRANS NPN 45V HIGH GAIN PDI5
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
DXT690BP5Q-13 PDF
Availability
0 pieces
Unit Price
$0.30000

Current price of DXT690BP5Q-13 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DXT690BP5Q-13 Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)
Part Status:Active
Transistor Type:NPN
Current - Collector (Ic) (Max):3 A
Voltage - Collector Emitter Breakdown (Max):45 V
Vce Saturation (Max) @ Ib, Ic:350mV @ 150mA, 3A
Current - Collector Cutoff (Max):20nA
DC Current Gain (hFE) (Min) @ Ic, Vce:400 @ 1A, 2V
Power - Max:740 mW
Frequency - Transition:150MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:PowerDI™ 5
Supplier Device Package:PowerDI™ 5
