NTE2696

NTE2696

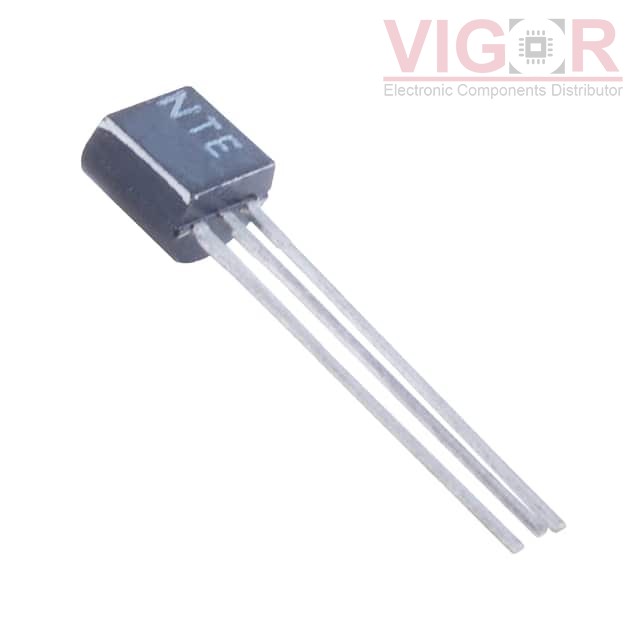

Image is for reference,
please contact us to get the real picture

Part No :

NTE2696

Manufacturer
NTE Electronics, Inc.
Description
T-NPN SI 120V IC=100MA TO-92
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
NTE2696 PDF
Availability
1066 pieces
Unit Price
$1.73000

Current price of NTE2696 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTE2696 Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Transistor Type:NPN
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):120 V
Vce Saturation (Max) @ Ib, Ic:300mV @ 1mA, 10mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:350 @ 2mA, 6V
Power - Max:300 mW
Frequency - Transition:100MHz
Operating Temperature:125°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package:TO-92
