2SD19960TA

2SD19960TA

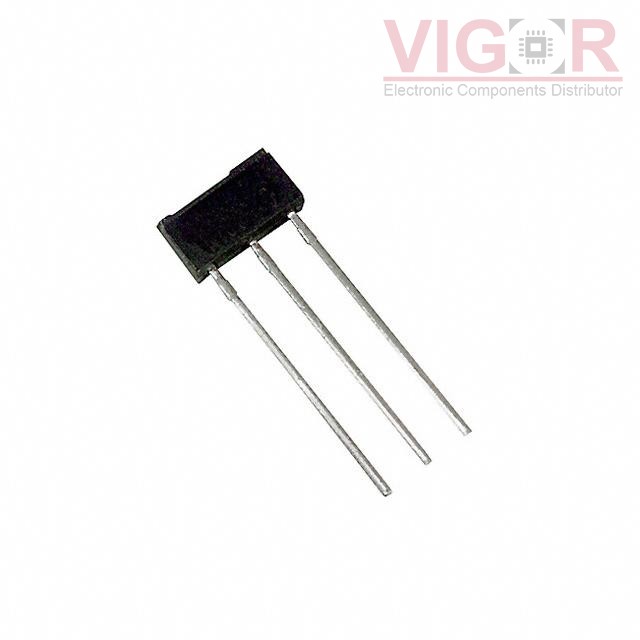

Image is for reference,
please contact us to get the real picture

Part No :

2SD19960TA

Manufacturer
Panasonic
Description
TRANS NPN 20V 0.5A MT-1
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
2SD19960TA PDF
Availability
3885 pieces
Unit Price
$0.51000

Current price of 2SD19960TA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2SD19960TA Specifications
Type Description
Series:-
Package:Cut Tape (CT)Tape & Box (TB)
Part Status:Obsolete
Transistor Type:NPN
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):20 V
Vce Saturation (Max) @ Ib, Ic:400mV @ 20mA, 500mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:400 @ 500mA, 2V
Power - Max:600 mW
Frequency - Transition:200MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:3-SIP
Supplier Device Package:MT-1-A1
