2SA1806JRL

2SA1806JRL

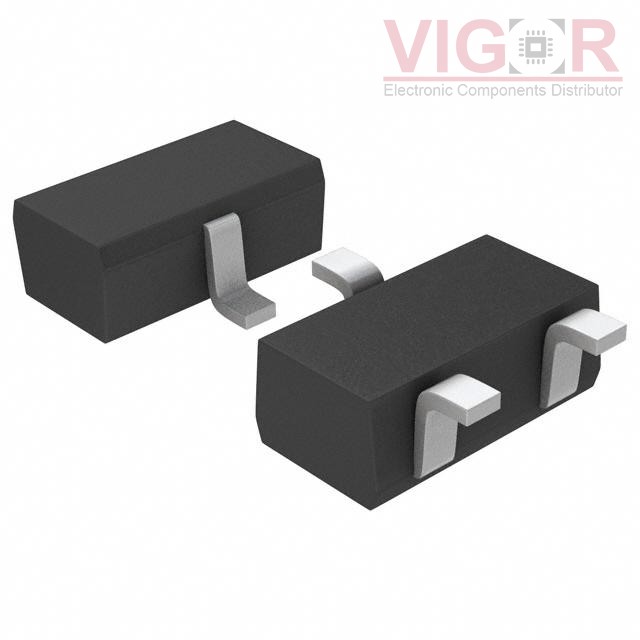

Image is for reference,
please contact us to get the real picture

Part No :

2SA1806JRL

Manufacturer
Panasonic
Description
TRANS PNP 15V 0.05A SSMINI-3
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 17 - Aug 21 2025
DataSheet
2SA1806JRL PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 2SA1806JRL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2SA1806JRL Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Transistor Type:PNP
Current - Collector (Ic) (Max):50 mA
Voltage - Collector Emitter Breakdown (Max):15 V
Vce Saturation (Max) @ Ib, Ic:200mV @ 1mA, 10mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:90 @ 10mA, 1V
Power - Max:125 mW
Frequency - Transition:1.5GHz
Operating Temperature:125°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-89, SOT-490
Supplier Device Package:SSMini3-F1
