NTLUD3A260PZTBG

NTLUD3A260PZTBG

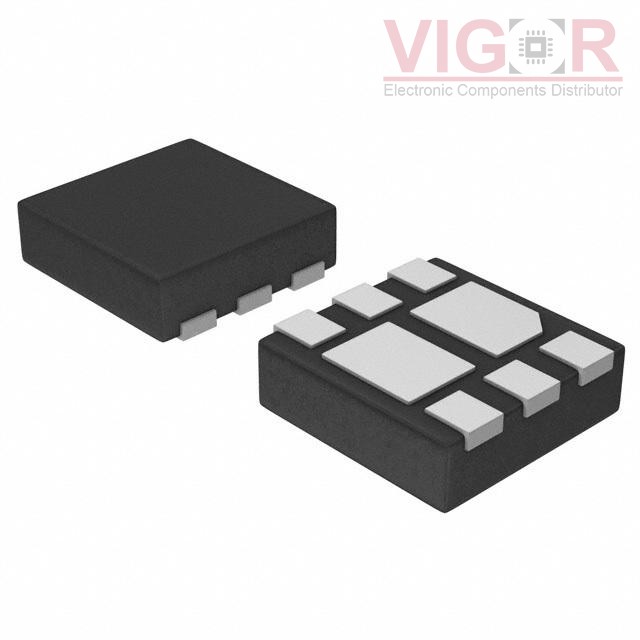

Image is for reference,
please contact us to get the real picture

Part No :

NTLUD3A260PZTBG

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
MOSFET 2P-CH 20V 1.3A 6UDFN
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
NTLUD3A260PZTBG PDF
Availability
288045000 pieces
Unit Price
$0.45000

Current price of NTLUD3A260PZTBG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTLUD3A260PZTBG Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:2 P-Channel (Dual)
FET Feature:Logic Level Gate
Drain to Source Voltage (Vdss):20V
Current - Continuous Drain (Id) @ 25°C:1.3A
Rds On (Max) @ Id, Vgs:200mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id:1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:4.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:300pF @ 10V
Power - Max:500mW
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:6-UFDFN Exposed Pad
Supplier Device Package:6-UDFN (1.6x1.6)
