AON3820

AON3820

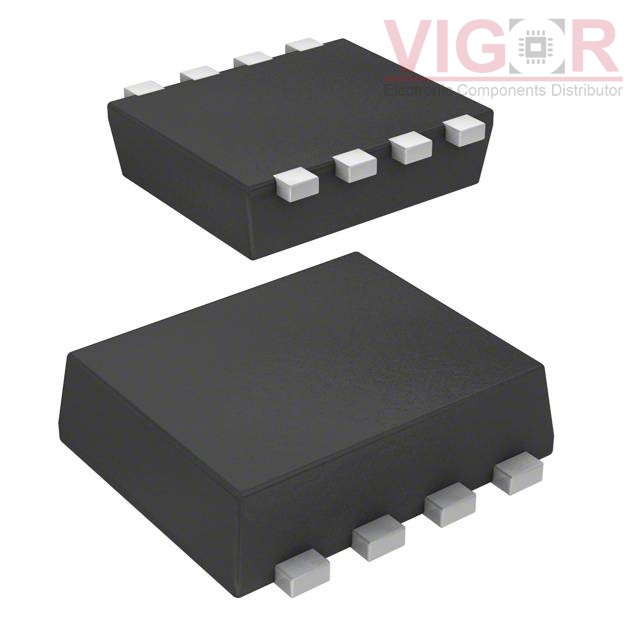

Image is for reference,
please contact us to get the real picture

Part No :

AON3820

Manufacturer
Alpha and Omega Semiconductor, Inc.
Description
MOSFET 2 N-CHANNEL 24V 8A 8DFN
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
AON3820 PDF
Availability
0 pieces
Unit Price
$0.23359

Current price of AON3820 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AON3820 Specifications
Type Description
Series:AlphaMOS
Package:Tape & Reel (TR)
Part Status:Active
FET Type:2 N-Channel (Dual)
FET Feature:Standard
Drain to Source Voltage (Vdss):24V
Current - Continuous Drain (Id) @ 25°C:8A (Ta)
Rds On (Max) @ Id, Vgs:8.9mOhm @ 8A, 4.5V
Vgs(th) (Max) @ Id:1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:20nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:1325pF @ 12V
Power - Max:2W
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-SMD, Flat Lead
Supplier Device Package:8-DFN (3x3)
