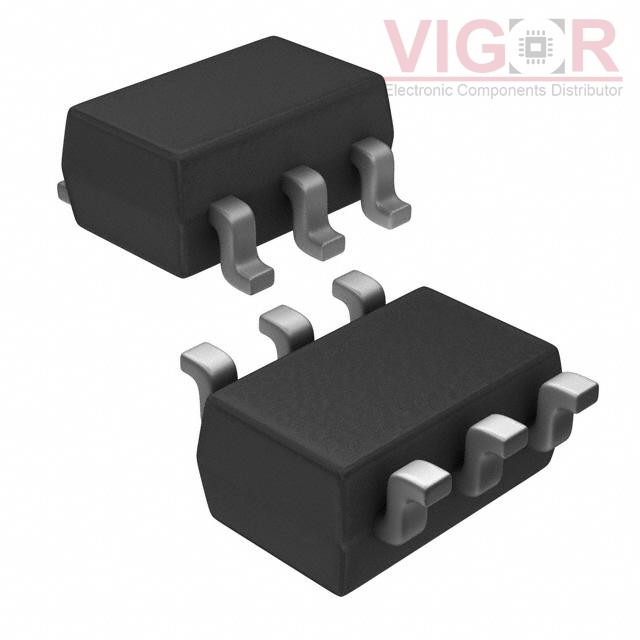

AO6800

Image is for reference,
please contact us to get the real picture

Part No :: AO6800

Manufacturer: Alpha and Omega Semiconductor, Inc.

Description: MOSFET 2N-CH 30V 3.4A 6-TSOP

Catalog: Transistors - FETs, MOSFETs - Arrays

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: AO6800 PDF

Availability: 0 pieces

Unit Price: ~~$0.54000~~

Current price of AO6800 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AO6800 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	30V
Current - Continuous Drain (Id) @ 25°C:	3.4A
Rds On (Max) @ Id, Vgs:	60mOhm @ 3.4A, 10V
Vgs(th) (Max) @ Id:	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	235pF @ 15V
Power - Max:	1.15W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SC-74, SOT-457
Supplier Device Package:	6-TSOP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

SIA906EDJ-T1-GE3

MOSFET 2N-CH 20V 4.5A SC70-6

HOT

FS45MR12W1M1B11BOMA1

MOSFET MODULE 1200V 50A

HOT

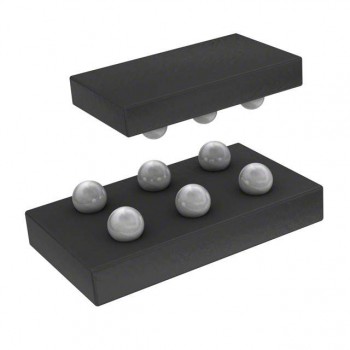

CSD83325L
