TSM680P06DPQ56 RLG

TSM680P06DPQ56 RLG

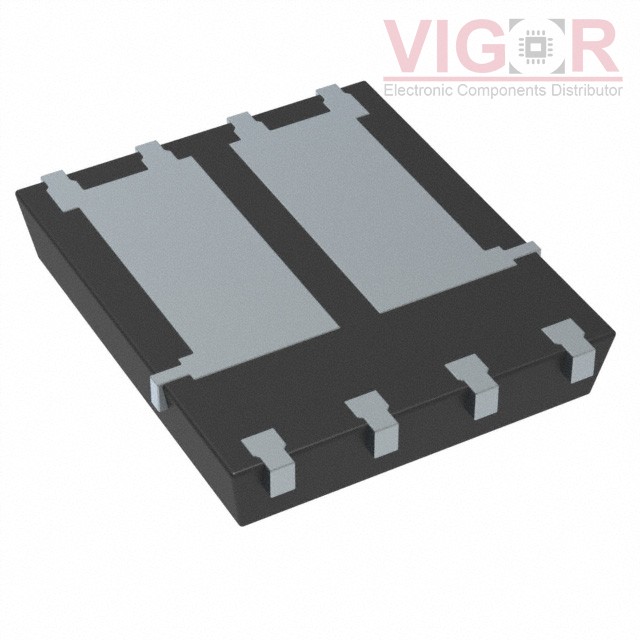

Image is for reference,
please contact us to get the real picture

Part No :

TSM680P06DPQ56 RLG

Manufacturer
TSC (Taiwan Semiconductor)
Description
MOSFET 2 P-CH 60V 12A 8PDFN
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
TSM680P06DPQ56 RLG PDF
Availability
460 pieces
Unit Price
$1.16000

Current price of TSM680P06DPQ56 RLG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TSM680P06DPQ56 RLG Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:2 P-Channel (Dual)
FET Feature:Standard
Drain to Source Voltage (Vdss):60V
Current - Continuous Drain (Id) @ 25°C:12A (Tc)
Rds On (Max) @ Id, Vgs:68mOhm @ 6A, 10V
Vgs(th) (Max) @ Id:2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:16.4nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:870pF @ 30V
Power - Max:3.5W
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-PowerTDFN
Supplier Device Package:8-PDFN (5x6)
