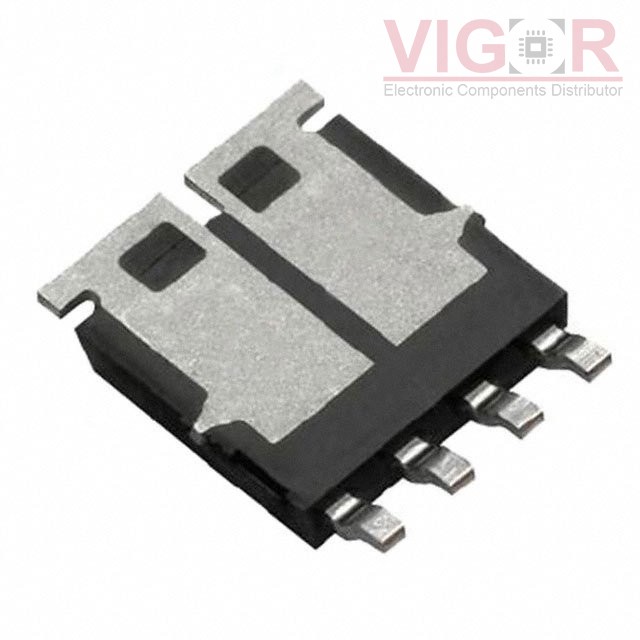

SQJ504EP-T1_GE3

SQJ504EP-T1_GE3

Image is for reference,
please contact us to get the real picture

Part No :

SQJ504EP-T1_GE3

Manufacturer
Vishay / Siliconix
Description
MOSFET N/P CHAN 40V POWERPAK SO-
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
SQJ504EP-T1_GE3 PDF
Availability
7970 pieces
Unit Price
$1.39000

Current price of SQJ504EP-T1_GE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SQJ504EP-T1_GE3 Specifications
Type Description
Series:Automotive, AEC-Q101, TrenchFET®
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N and P-Channel
FET Feature:Standard
Drain to Source Voltage (Vdss):40V
Current - Continuous Drain (Id) @ 25°C:30A (Tc)
Rds On (Max) @ Id, Vgs:7.5mOhm @ 8A, 10V, 17mOhm @ 8A, 10V
Vgs(th) (Max) @ Id:2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:30nC @ 10V, 85nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:1900pF @ 25V, 4600pF @ 25V
Power - Max:34W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:PowerPAK® SO-8 Dual
Supplier Device Package:PowerPAK® SO-8 Dual
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SI3951DV-T1-GE3

SI3951DV-T1-GE3

MOSFET 2P-CH 20V 2.7A 6-TSOP
HOT IRFR2209AS2463

IRFR2209AS2463

TO 252 PACKAGE STANDARD GATE DEV

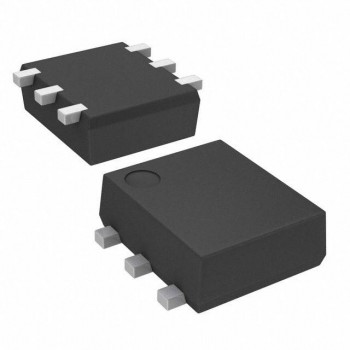

HOT VT6K1T2CR
