TSM150NB04DCR RLG

TSM150NB04DCR RLG

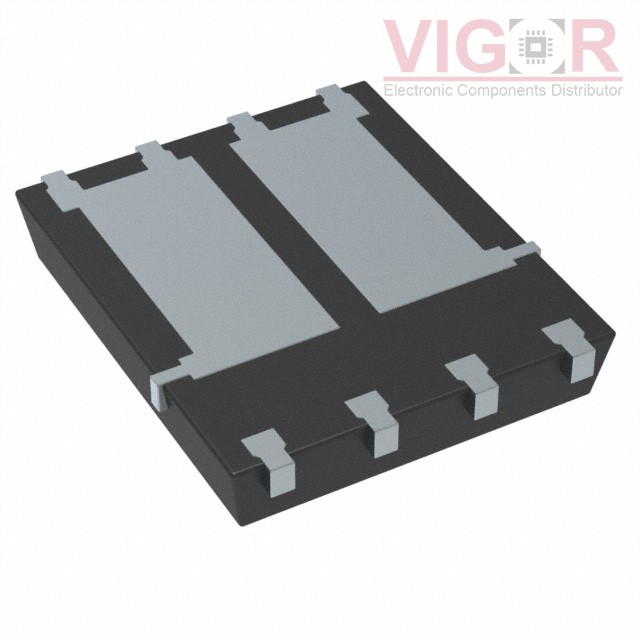

Image is for reference,
please contact us to get the real picture

Part No :

TSM150NB04DCR RLG

Manufacturer
TSC (Taiwan Semiconductor)
Description
DUAL N-CHANNEL POWER MOSFET 40V,
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
TSM150NB04DCR RLG PDF
Availability
5000 pieces
Unit Price
$1.07000

Current price of TSM150NB04DCR RLG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TSM150NB04DCR RLG Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:2 N-Channel (Dual)
FET Feature:Standard
Drain to Source Voltage (Vdss):40V
Current - Continuous Drain (Id) @ 25°C:8A (Ta), 38A (Tc)
Rds On (Max) @ Id, Vgs:15mOhm @ 8A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:18nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:1132pF @ 20V
Power - Max:2W (Ta), 40W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-PowerTDFN
Supplier Device Package:8-PDFN (5x6)
