CSD87333Q3D

CSD87333Q3D

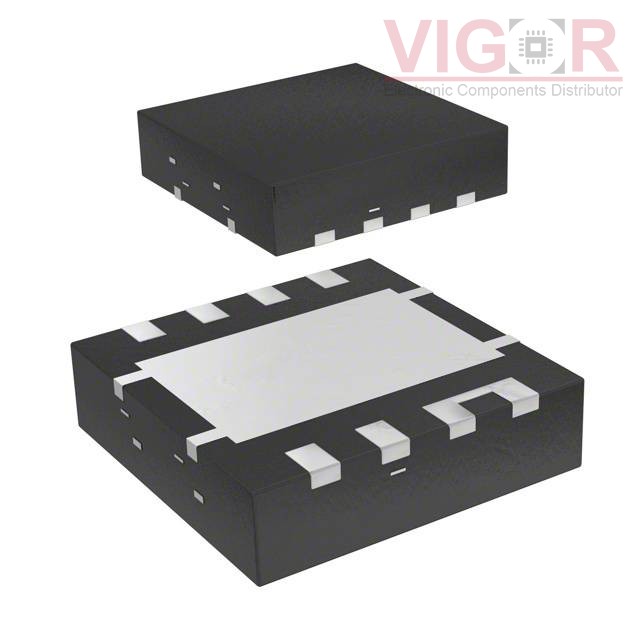

Image is for reference,
please contact us to get the real picture

Part No :

CSD87333Q3D

Manufacturer
Texas Instruments
Description
MOSFET 2N-CH 30V 15A 8SON
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
CSD87333Q3D PDF
Availability
2301 pieces
Unit Price
$1.27000

Current price of CSD87333Q3D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CSD87333Q3D Specifications
Type Description
Series:NexFET™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:2 N-Channel (Dual) Asymmetrical
FET Feature:Logic Level Gate, 5V Drive
Drain to Source Voltage (Vdss):30V
Current - Continuous Drain (Id) @ 25°C:15A
Rds On (Max) @ Id, Vgs:14.3mOhm @ 4A, 8V
Vgs(th) (Max) @ Id:1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:4.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:662pF @ 15V
Power - Max:6W
Operating Temperature:125°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-PowerTDFN
Supplier Device Package:8-VSON (3.3x3.3)
