STL20DN10F7

STL20DN10F7

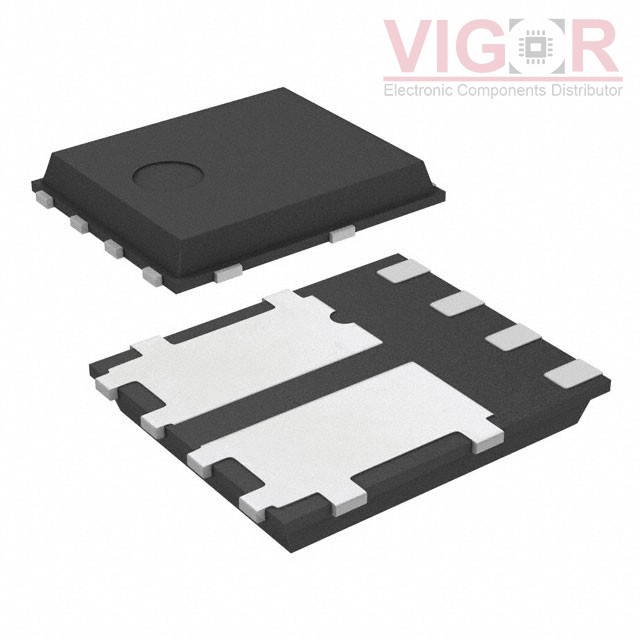

Image is for reference,
please contact us to get the real picture

Part No :

STL20DN10F7

Manufacturer
STMicroelectronics
Description
MOSFET 2N-CH 100V 20A PWRFLAT56
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
STL20DN10F7 PDF
Availability
0 pieces
Unit Price
$1.82000

Current price of STL20DN10F7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STL20DN10F7 Specifications
Type Description
Series:DeepGATE™, STripFET™ VII
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
FET Type:2 N-Channel (Dual)
FET Feature:Standard
Drain to Source Voltage (Vdss):100V
Current - Continuous Drain (Id) @ 25°C:20A
Rds On (Max) @ Id, Vgs:67mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id:4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:7.8nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:408pF @ 50V
Power - Max:62.5W
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-PowerVDFN
Supplier Device Package:PowerFlat™ (5x6)
